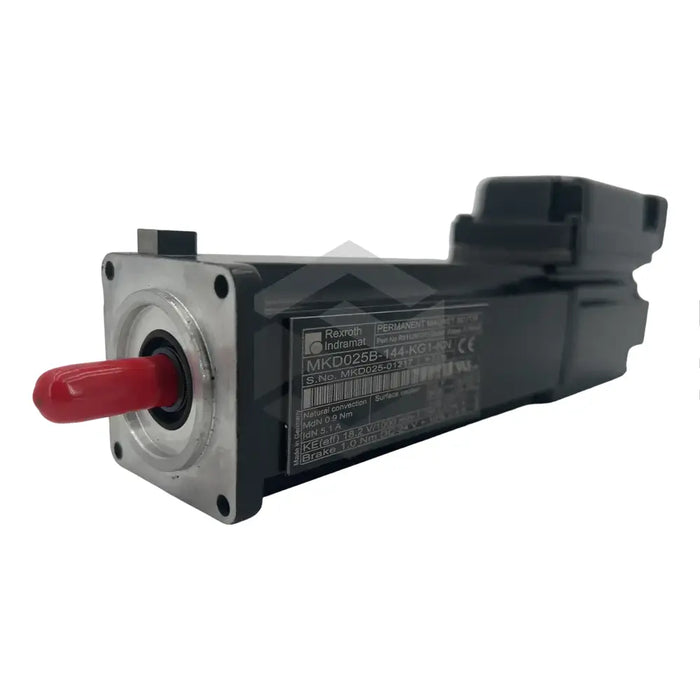

product Main (Front Left) image of R911267373

R911267373

by Bosch Rexroth Indramat
$5,502.67 - $5,502.67
$5,502.67
$5,502.67 - $5,502.67
$5,502.67
In Stock, Ships Today
The R911267373 (MKD025B-144-KG1-KN) is a top-tier permanent magnet motor designed and produced by Bosch Rexroth Indramat. It is characterized by its electronic commutation and use of special magnet materials for its manufacturing. The combination of these characteristics result in a motor with low inertia ratios, allowing for superior operation under demanding conditions. The motor further supports high repeat frequencies in start-stop operation. This highly flexible motor has an easily attachable design and can be installed in multiple orientations, due in part to its DIN42948 compliant flange. The flange dimensions are 54mm with a centering diameter of 40mm, delivering continuous torques between 0.4 Nm to 0.9 Nm at standstill. Notably, this motor includes a resolver feedback (denoted by 'N' in the type code) and a holding brake. When in a de-energized state, the brake provides axis stability through an electrical release operation. It also incorporates an integrated encoder system for constant drive controller monitoring.
30 Day Warranty
Technical Specifications
  • Feedback Type: Resolver with Relative Position Detected (Denoted with "N")
  • Continuous Torque at Standstill: 0.4 Nm to 0.9 Nm
  • Flange Size: 54mm
  • Inertia Mass: Low
  • Model: MKD025B-144-KG1-KN
