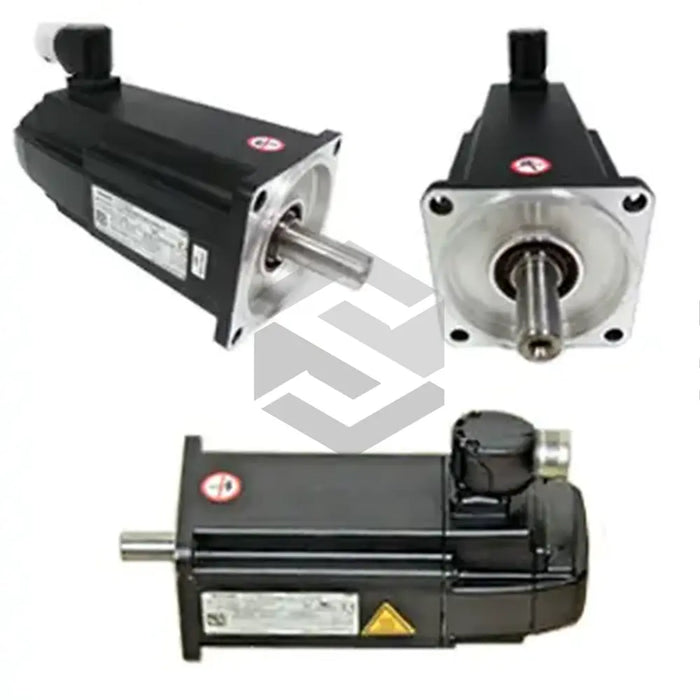

MS2N04-C0BNN-BSDG1-NNNNN-NN
The MS2N04-C0BNN-BSDG1-NNNNN-NN synchronous servo motor from Bosch Rexroth Indramat is a precision-engineered solution within the MS2N Synchronous Servo Motors series, optimized for high-accuracy motion control. This model features a Single-turn absolute encoder with Encoder Type: Hiperface technology, delivering Encoder Resolution: 128 signals per rotation and a total of 2048 steps per revolution. The encoder operates across an Encoder Voltage Rating: 5 to 12 volts DC, with a nominal supply of 7 volts DC and a Current Draw for Encoder: 35 mA. Equipped with a robust holding brake, this motor provides a Holding Brake Torque: 5 Nm and requires Holding Brake Voltage: 24 volts DC at 0.63 A. The motor’s winding specification reaches 6,000 min, and its turnable M17 double-plug electrical connection ensures flexible installation in compact drive systems.
Performance is highlighted by a Standstill Torque (60K): 2.8 Nm, a Normal Torque (Cold Temperature): 13.05 Nm at 20 °C, and a Maximum Torque (Hot Temperature): 12.96 Nm under elevated operating conditions. The rotor’s low Rotor Inertia: 0.00016 kgm² enables rapid acceleration and deceleration, facilitating precise response to control commands. The single-turn design ensures unambiguous position feedback over each 360° revolution, while the 128-signal encoder interface supports high-bandwidth closed-loop control. With a maximum electrical connection time of 30 ms for brake engagement and a release time of 45 ms, the motor delivers reliable torque management in dynamic stop-and-start cycles. Integration with compatible servo drives provides seamless tuning of velocity and position loops, maximizing operational efficiency.
Built for demanding industrial environments, the MS2N04-C0BNN-BSDG1-NNNNN-NN offers a smooth shaft seal and robust housing to resist contaminants and mechanical wear. The turnable M17 double-plug connection simplifies cable routing and maintenance, reducing system downtime. The inclusion of an electrical holding brake ensures secure locking during power loss or emergency stops, enhancing safety and positional stability. Its compatibility with standard closed-loop controllers and high-resolution Hiperface feedback makes this servo motor ideal for robotics, automated assembly, packaging machinery, and precision indexing applications. Overall, the motor’s combination of high torque density, rapid response, and integration versatility establishes it as a dependable component in advanced motion control systems.
