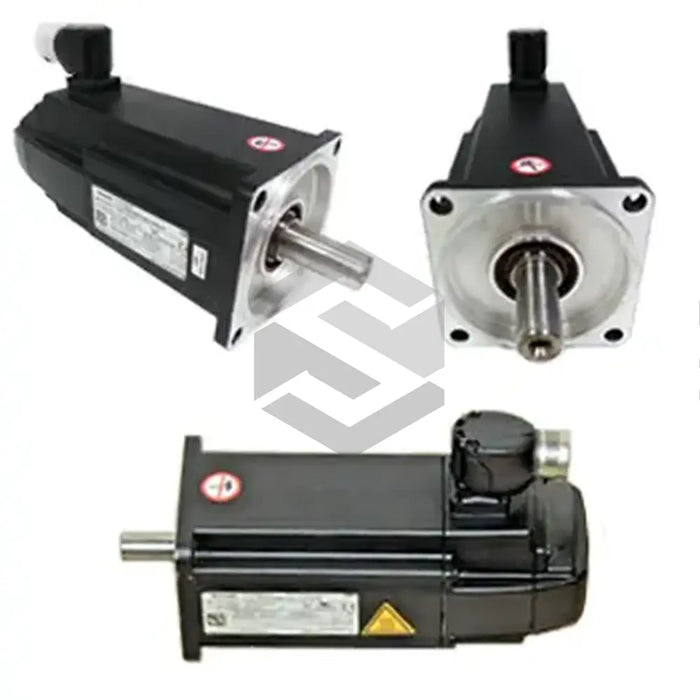

MS2N06-B1BNN-CMSK0-NNNNN-NN
The Bosch Rexroth Indramat MS2N06-B1BNN-CMSK0-NNNNN-NN synchronous servo motor from the MS2N Synchronous Servo Motors series delivers a robust combination of precision and power for modern industrial automation. With a rated power of 1.5 kW and a rated torque of 4.78 Nm, it provides consistent drive performance under continuous operation. The motor achieves a peak torque of 10.2 Nm and a rated speed of 3000 rpm, allowing rapid acceleration profiles and accurate motion control. Utilizing natural convection for cooling, it maintains optimal thermal equilibrium without auxiliary fan systems, while the IP65 protection class safeguards internal components against dust and water ingress. Designed by Bosch Rexroth Indramat, this motor integrates seamlessly into demanding Industry 4.0 workflows.
Detailed technical specifications underline the MS2N06’s adaptability across varied applications. The motor type is a high-precision synchronous servo motor with a compact housing length of 60 mm and a standardized connection type of circular connector for reliable power and feedback interfacing. It operates at a rated voltage of 400 V and supports a maximum speed of 6000 rpm for rapid positioning tasks. Continuous torque ratings of 3.25 Nm at 60K and 3.6 Nm at 100K illustrate its temperature-compensated performance envelope, while the feedback type of single-turn absolute encoder provides high-fidelity position feedback. The design includes a precise flange interface for mounting, ensuring compatibility with industry-standard drive systems.
Operationally, the MS2N06-B1BNN-CMSK0-NNNNN-NN excels in dynamic performance and reliability. The self-cooled architecture based on natural convection eliminates the need for external fans, reducing maintenance points and noise. Its continuous torque stability across varying ambient conditions ensures consistent throughput, and the peak torque capacity handles short-duration load surges effectively. The motor’s inertia characteristics afford smooth acceleration and deceleration, minimizing mechanical stress on connected load. Protection to IP65 level extends operational life in harsh factory environments by resisting particulate ingress and water exposure.
System integration is streamlined through out-of-the-box compatibility with Bosch Rexroth IndraDrive controllers, simplifying setup and parameterization. The motor’s integrated data memory accelerates drive commissioning, with preset motor parameters readily accessible by the drive electronics. Designed for precision assembly, robotics, packaging machinery, and CNC systems, the MS2N06-B1BNN-CMSK0-NNNNN-NN offers a versatile solution for applications demanding both high dynamic response and long-term reliability. Continuous Bosch Rexroth support and diagnostic capabilities further enhance uptime in critical industrial processes.
