MS2N10-D0BHA-CSVG0-NNNNN-NN

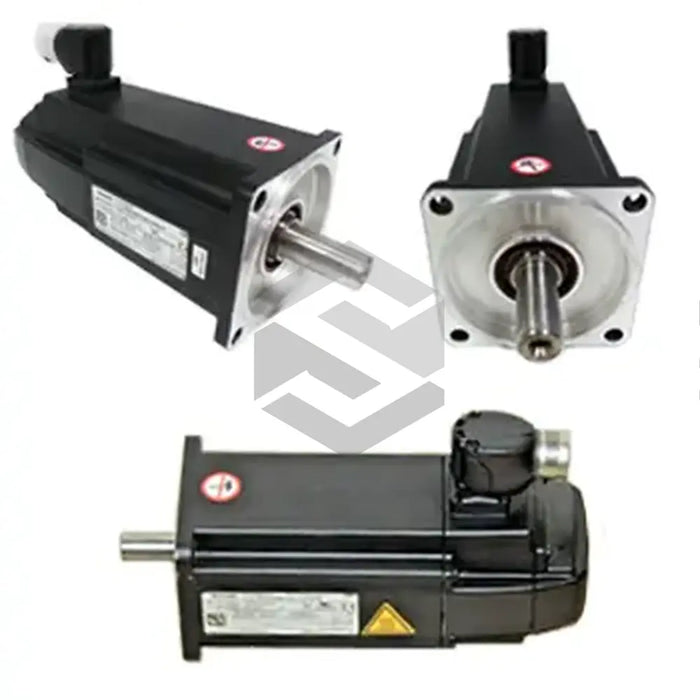

The Bosch Rexroth Indramat MS2N10-D0BHA-CSVG0-NNNNN-NN synchronous servo motor delivers a robust combination of high torque density and precision control within the MS2N Synchronous Servo Motors series. This 3-phase permanent magnet motor is designed for industrial automation and is rated for a continuous current of 80 Amps with a nominal power loss of 25 Watts, ensuring efficient operation under sustained loads. It features compact external dimensions of 80 x 398 x 200 mm and a total mass of 35 kg, facilitating integration into space-constrained machine designs. The servo motor maintains electromagnetic compatibility at EMC Level Class A and exhibits a rated leakage current of 35 milliamps, supporting compliance with stringent industrial regulations. Operators will appreciate its ability to perform reliably in ambient temperatures from 0 to 40°C, with derated operation permitted up to 60°C.
The MS2N10-D0BHA-CSVG0-NNNNN-NN’s electrical and mechanical specifications have been engineered for consistent performance. It delivers a continuous rated power of 12.7 kW at a nominal speed of 1800 RPM while drawing a motor current of 26.6 Amps and producing motor torque of 67.4 Nm under rated conditions. At standstill, the motor achieves a standstill current of 32.4 Amps and generates standstill torque of 82.4 Nm, enabling robust start-up acceleration. The winding resistance is precisely measured at 0.386 Ohms, with an inductance of 10.3 millihenry to optimize current response. Maximum electrical speed reaches 4000 RPM, and the maximum mechanical speed extends to 6000 RPM. The unit’s frame length is designated as D, and its thermal insulation meets Class F requirements for extended service life.
Operational resilience is assured through a protection class of IP67, which guards internal components against dust and temporary immersion. Forced air cooling is provided by an integrated axial fan operating on 230 Volts AC, maintaining optimal operating temperatures even under heavy load cycles. Acoustic emissions are controlled, with a sound pressure output of 75 dB(A) measured at nominal load conditions. Feedback precision is delivered via an Acuro link single turn encoder with 20-bit resolution, and dual cable connectors with rotatable heads simplify routing of power and signal lines. Despite its high power density, the rotor inertia has been minimized for dynamic response, and optional holding brakes are available across the MS2N series (not fitted on this specific model).
System integration is streamlined through compatibility with standard industrial servo drives and controls, making the MS2N10-D0BHA-CSVG0-NNNNN-NN ideal for packaging machinery, pick-and-place robots, and CNC automation systems. Its compact footprint and high torque output enable deployment in multi-axis gantry systems and precision assembly lines. The motor’s compliance with EMC Level Class A and IP67 rating ensures reliable operation in harsh industrial environments, from metalworking to material handling. By leveraging Bosch Rexroth’s proven MS2N series architecture, designers gain a scalable platform that balances performance, durability, and operational efficiency.
