MT504A2-9191-010

Original price $1,512.50 - Original price $1,512.50
Original price
$1,512.50
$1,512.50 - $1,512.50
Current price $1,512.50

In Stock, Ships 1 - 3 Days

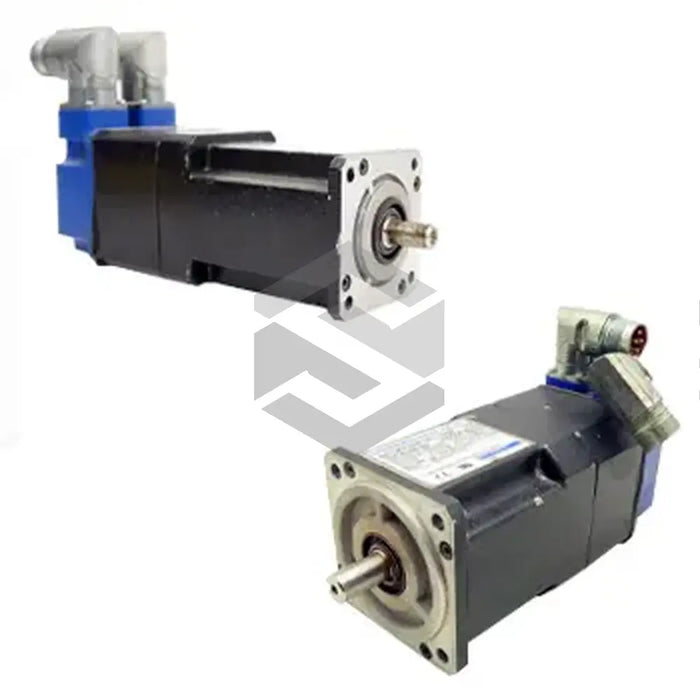

The Kollmorgen MT504A2-9191-010 is a robust servo motor from the MTC Servo Motors series by Kollmorgen. Operating at 230V Vrms L/L, it delivers 6.5 Nm continuous torque and up to 21.6 Nm stall peak torque. Featuring a 512 SINCOS encoder and IP65 protection, it reaches 2400 RPM for precise industrial automation.

Contact Us

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Back EMF Constant (KB)


82.0 V/KRPM

Feedback Device


512 SINCOS Encoder PPR

Ingress Protection (IP)


IP65

Insulation Resistance


100 M?

Mounting


35 mm standard shaft with 10 mm square key

Resistance (L/L @ 25 degrees C)


3.42 ?

Serial Number


00J504A2-1656

Speed Rating


2400 RPM Max

Stall Continuous Current


5.0 Amps (RMS)

Stall Continuous Torque


6.5 Nm @ 40 degrees C Ambient

Stall Peak Current


20.8 Amps (RMS)

Stall Peak Torque


21.6 Nm @ 40 degrees C Ambient

Thermal Time Constant


31 minutes

Voltage


230V Vrms L/L

Winding


B
