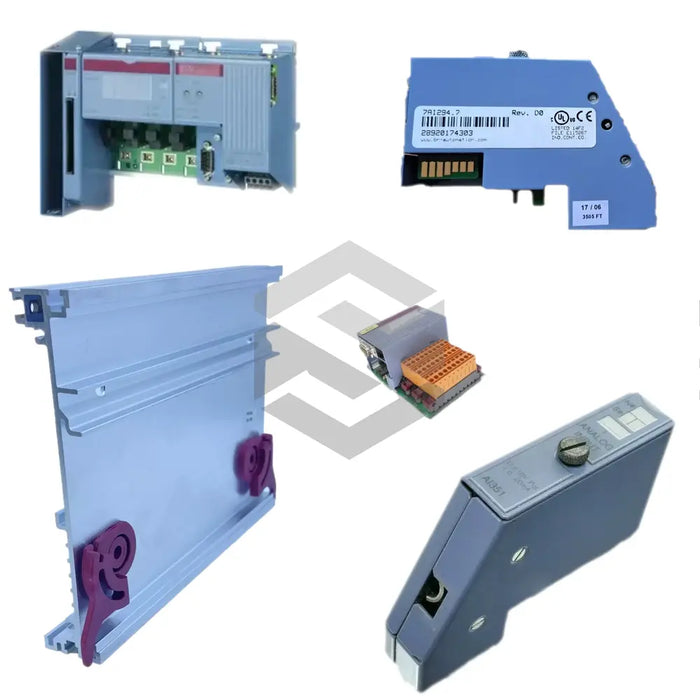

S image of 7AT324.70

7AT324.70

by B & R Automation
$456.84 - $1,477.99
$1,477.99
$456.84 - $1,477.99
$1,477.99

In Stock, Ships 1 - 3 Days

The 7AT324.70 Analog Input Module by B&R Automation, part of the B&R 2003 series, is engineered for precise temperature measurement with four temperature inputs via a 2-line connection. It is compatible with KTY10, KTY84, PT100, and PT1000 sensors, covering comprehensive temperature ranges from -200 to +850 degrees C. The module translates temperature readings into digital values using a 16-bit 2's complement format with a resolution of 16 bits and a lowpass 1st order input filter at 150 Hz. It excels in resistance measurement with two gain settings, an input current of 200 µA ±5.22%, and offers repeat precision of ±0.01%. The module's common-mode rejection is >90 dB at DC and >150 dB at 50 Hz ensuring accurate measurements. With a maximum error of ±0.1% at 25°C, offset drift of ±2.5 mΩ/°C, and gain drift of ±30 ppm/°C, this module is an asset for demanding industrial temperature monitoring tasks.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Product

7AT324.70

Manufacturer

B & R Automation

Product Line

B&R 2003 Module Series

Type

Analog Input Module

Temperature Inputs

4

Connection Type

2-line

Compatible Sensors

KTY10, KTY84, PT100, PT1000

Temperature Range (KTY10 Sensor)

-50 to +150 degrees C

Temperature Range (KTY84 Sensor)

-40 to +300 degrees C

Temperature Range (PT100 & PT1000 Sensors)

-200 to +850 degrees C

Measurement Format

16-bit 2's complement

Input Type

Resistance measurement

Measurement Current

200 µA +/-5.22 %

Repeat Precision

+/-0.01 %

Input Filter

Lowpass 1st order with 150 Hz cut-off frequency

Common Mode Rejection

>90 dB at DC, >150 dB at 50 Hz

Resistance Measurement Range G=1

0.1Ω to 5000.0Ω

Resistance Measurement Range G=2

0.05Ω to 5000.0Ω

Maximum Error

+0.1 % at 25 degrees C

Offset Drift

+/-2.5 mΩ/degrees C

Gain Drift

+/-30 ppm/degrees C

Digital Converter Resolution

16 Bit

Inputs Supported

4

Terminal Block

Separate order of TB712 required.
