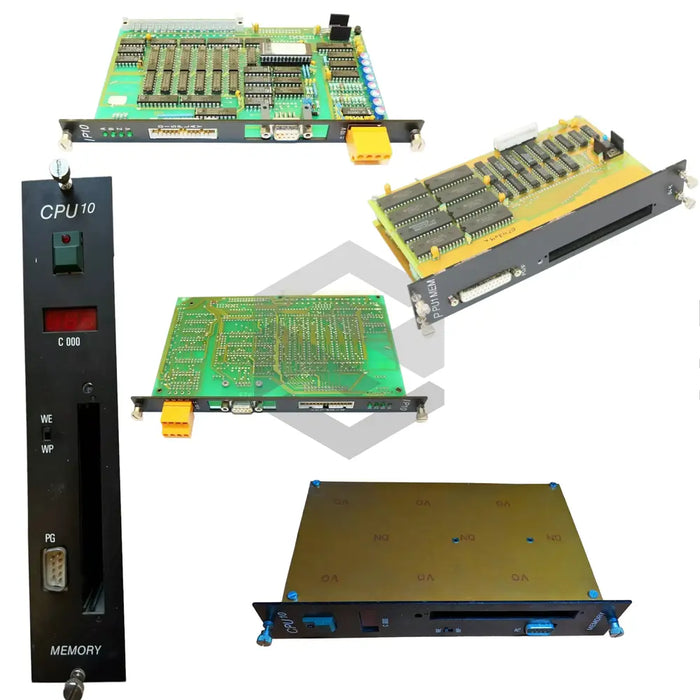

S image of ECPT81-0

ECPT81-0

by B & R Automation
$816.17 - $2,323.26
$2,323.26
$816.17 - $2,323.26
$2,323.26

In Stock, Ships 1 - 3 Days

The ECPT81-0 by B & R Automation is a high-performance module from the ECP Series, tailored for precise temperature measurement using PT100 sensors. It supports eight channels of analog input compliant with DIN 43760 standards. The module offers a programmable temperature range of -25 to +75°C or -25 to +475°C, suitable for diverse industrial environments. Featuring a 10-bit resolution and a 3-millisecond conversion time, the module ensures accurate and rapid data processing. Its hardware automatic linearization minimizes linear errors, enhancing measurement accuracy. The three-wire connection reduces signal interference, improving data quality. Operational accuracy includes a basic accuracy of ~0.3% at 20°C. With an offset drift of ~0.039% per °C and a gain drift of ~0.017% per °C, it maintains stability across temperature changes. The module's power consumption is flexible at 1.4W at 8V, 0.9W at 15V, and 1.5W at -30V, optimizing energy use in various configurations.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

B&R Automation

Series

ECP Series

Model

ECPT81-0

Module Type

Temperature Measurement Module

Sensor Type

PT100 sensors

Number of Channels

8

Analog Input Standard

DIN 43760

Programmable Temperature Range

-25 to +75 degrees C, -25 to +475 degrees C

Resolution

10-bit

Conversion Time

3 milliseconds per channel

Linearization

Hardware automatic linearization

Connection Type

Three-wire connection

Basic Accuracy

0.3% plus 0.011% per ohm of resistance

Offset Drift

0.039% per degrees C plus 0.00008% per ohm per degrees C

Gain Drift

0.017% per degrees C

Power Consumption at 8V

1.4W

Power Consumption at 15V

0.9W

Power Consumption at -30V

1.5W
