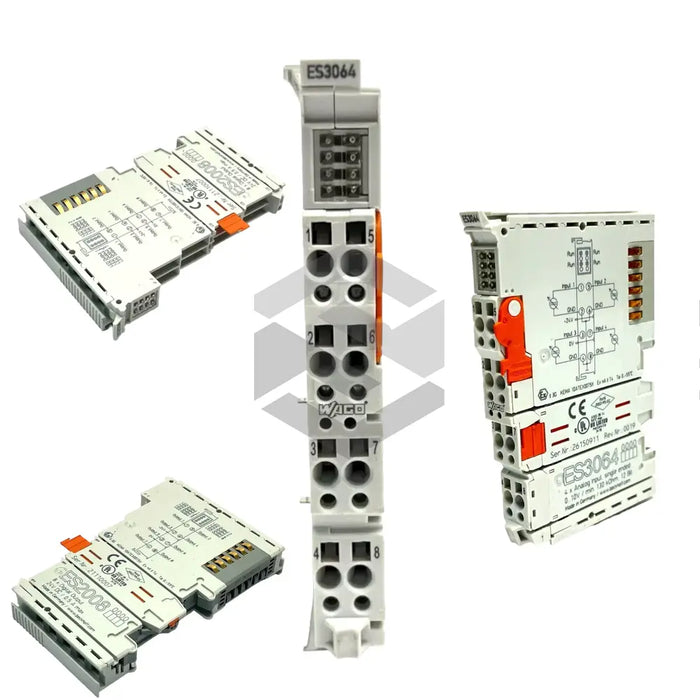

ES2008

Original price $410.91 - Original price $452.00
Original price
$452.00
$410.91 - $452.00
Current price $452.00

In Stock, Ships 1 - 3 Days

The Beckhoff ES2008 terminal belongs to the ES EtherCAT Terminals series and features 8 outputs. It operates at 24 V DC with reverse voltage protection and short-circuit proof outputs of 0.5 A per channel. Switching times are 60 μs on and 300 μs off, and consumption is 110 mA from E-bus.

Contact Us

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Bit Width In The Process Image


8 outputs

Breaking Energy


< 150 mJ/channel

Connection Technology


1-wire

Current Consumption E-bus


typ. 110 mA

Current Consumption Power Contacts


typ. 15 mA + load

Emc Immunity/emission


conforms to EN 61000-6-2/EN 61000-6-4

Load Type


Ohmic, inductive, lamp load

Max. Output Current


0.5 A (short-circuit proof) per channel

Nominal Voltage


24 V DC (-15%/+20%)

Number Of Outputs


8

Operating/storage Temperature


-25…+60°C/-40…+85°C

Reverse Voltage Protection


Yes

Short-circuit Current


typ. < 2 A

Switching Times


typ. TON: 60 µs, typ. TOFF: 300 µs

Vibration/shock Resistance


conforms to EN 60068-2-6/EN 60068-2-27
