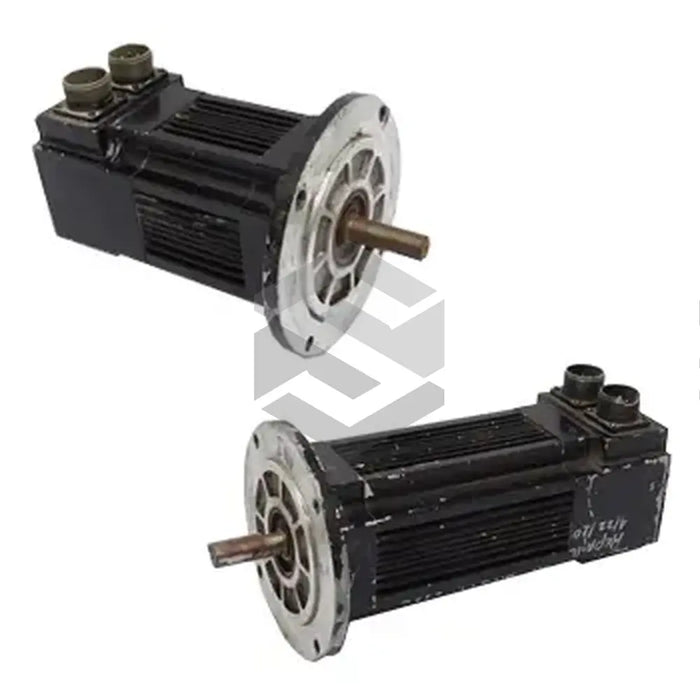

S image of F43GENA-R2-MN-NV-00

F43GENA-R2-MN-NV-00

by Pacific Scientific
$1,375.00 - $1,375.00
$1,375.00
$1,375.00 - $1,375.00
$1,375.00

In Stock, Ships Fast

The F43GENA-R2-MN-NV-00 is a servomotor with 32 lb-in continuous stall torque and a 16.6 lb weight. Manufactured by Pacific Scientific in the F Servomotors series, it delivers 81 lb-in peak torque and 128 V/Krpm voltage constant. It features 3.6 A continuous stall current, 0.84 °C/Watt thermal resistance and IP65 waterproofing.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Continuous Stall Current (ics)

3.6 A

Continuous Stall Torque

32 lb-in (3.6 Nm)

Current At Peak Torque (ipk)

10.8 A

Inductance (line-line)

49 mH

Inertia (motor Only)

0.00936 lb-in.-sec^2 (1.06 kgm^2 x 10^-3)

Motor Waterproofing

In accordance with NEMA MG1-1.26, part E and IP65 standards

Optional Shaft Seal

Provides IP65 sealing; periodic lubrication required

Peak Torque

81 lb-in (9.2 Nm)

Resistance (line-line, Cold)

7.7 Ohms

Resistance (line-line, Hot)

11.6 Ohms

Thermal Resistance

0.84 °C/Watt

Thermal Time Constant

30 min

Torque Constant (kt Peak)

10.8 lb-in./A (1.22 Nm/A)

Voltage Constant (ke Peak)

128 V/Krpm (1.22 V/rad/sec)

Weight (motor Only)

16.6 lbs (7.5 kg)
