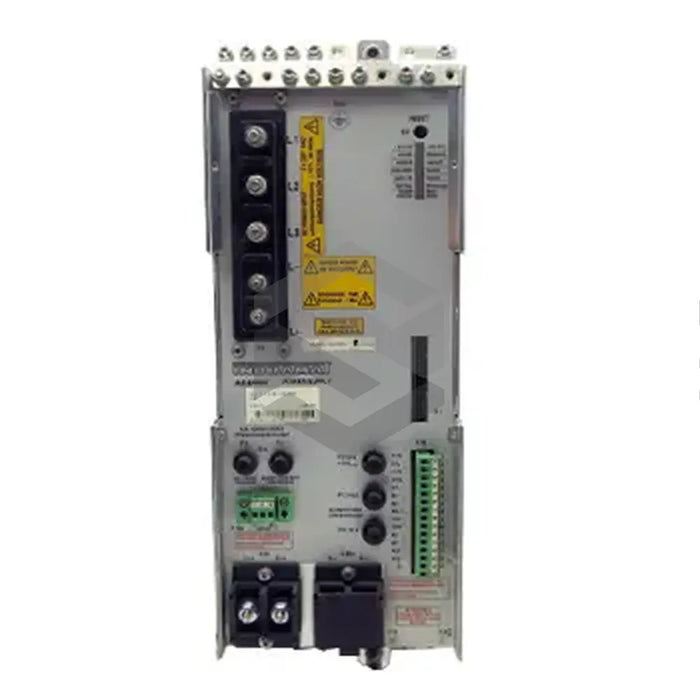

S image of KDV 2.2-100-220/300-W1

KDV 2.2-100-220/300-W1

by Bosch Rexroth Indramat
$5,155.21 - $5,155.21
$5,155.21
$5,155.21 - $5,155.21
$5,155.21

In Stock, Ships Fast

The Bosch Rexroth Indramat KDV 2.2-100-220/300-W1 is a robust power supply unit tailored for industrial applications, integrating a three-phase bridge to rectify AC voltage into a high DC output for drive modules. It features a buffer capacitance for efficient smoothing and supplies +/-15 V and 24 V to the drives. Essential for safe operation, its Bb1 contact must be closed for activation, and it includes a bleeder to handle regenerated energy in generator mode. The unit accommodates up to 24 kW mechanical output and 2 kW regenerative output, with overload protection via slow-blow fuses. Its connectivity supports 3 x 230 VAC systems, and it includes plug-in terminal screws for easy servicing. Temperature operation ranges from 5°C to 45°C, with input power adaptable to application needs. The device also features overvoltage protection through an isolating transformer and diagnostic capabilities via a display panel.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Model

KDV 2.2-100-220/300-W1

OutputVoltage

+/-15 V and 24 V

ContinuousMechanicalOutput

24 kW

ContinuousRegenerativeOutput

2 kW

InputPowerSupport

3 x 230 VAC

OperatingTemperatureRange

5°C to 45°C

Connectivity

Plug-in terminal screws

Diagnostics

Display below Reset button

FrontPanelFeatures

15-pin and 3-pin plug-in terminals

Protection

Overvoltage protection with isolating transformer

ConnectionAccessories

Busbars in connection kit

MonitorFunctions

Signal voltage bus

FuseType

Slow-blow fuses or commercial power protection fuses

BufferCapacitance

Yes for sufficient smoothing

Bb1Contact

Closed state required for power on

BleederFunction

Absorbs regenerated energy in generator mode

Rectification

Three-phase bridge
