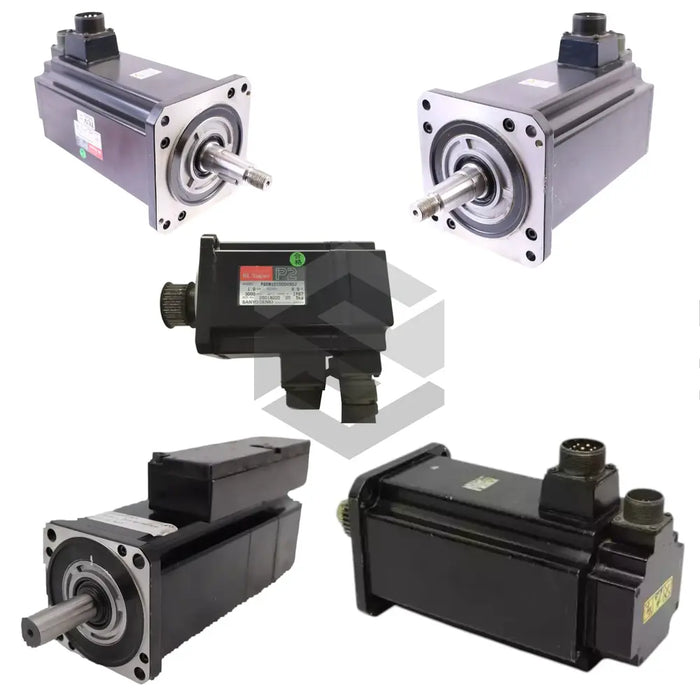

S image of P20B10100DXS0J

P20B10100DXS0J

by Sanyo Denki
$1,340.63 - $1,340.63
$1,340.63
$1,340.63 - $1,340.63
$1,340.63

In Stock, Ships 1 - 3 Days

The P20B10100DXS0J servo motor from Sanyo Denki's P2 Super BL Servo Motors series delivers high performance for industrial automation. It provides a rated output of 1.0 kW, a torque of 3.19 N·m, and reaches a maximum speed of 4,500 min⁻¹ on 200 VAC. The motor features a brake holding torque of 3.92 N·m and a rotor inertia of 1.54×10⁻⁴ kg·m². With an IP67 protection rating and a unit weight of 5 kg, it withstands harsh environments.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Brake Holding Torque

3.92 N·m

Continuous Stall Armature Current

8.0 Arms

Continuous Stall Torque

3.92 N·m

Induced Voltage Constant

18.6 mV/min⁻¹

Instantaneous Maximum Stall Armature Current

23.2 Arms

Instantaneous Maximum Stall Torque

10.3 N·m

Maximum Rotating Speed

4,500 min⁻¹

Phase Armature Resistance

0.51 Ω

Rated Armature Current

6.9 Arms

Rated Output

1.0 kW

Rated Rotating Speed

3,000 min⁻¹

Rated Torque

3.19 N·m

Rotor Inertia (abs-e Encoder)

1.54×10⁻⁴ kg·m²

Rotor Inertia (incremental Encoder)

1.55×10⁻⁴ kg·m²

Torque Constant

0.53 N·m/Arms
