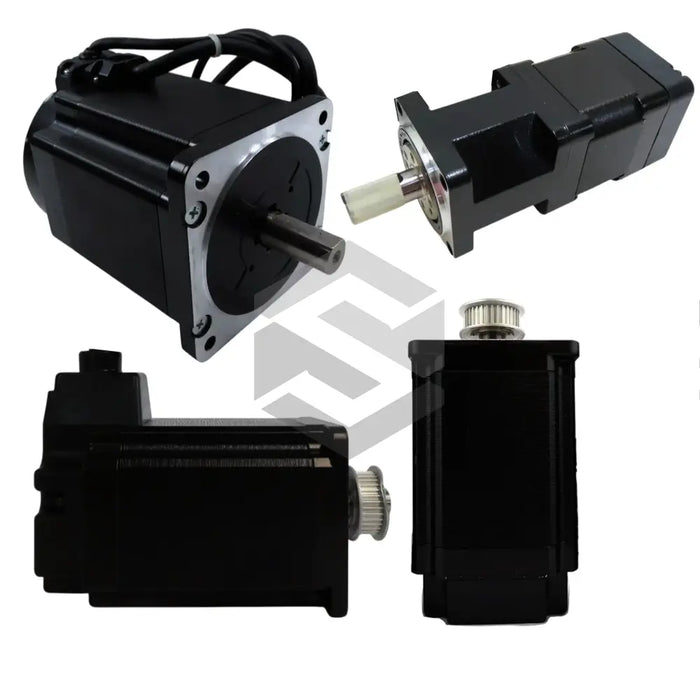

S image of PBM603FXE20

PBM603FXE20

by Sanyo Denki
$643.50 - $1,100.00
$1,100.00
$643.50 - $1,100.00
$1,100.00

In Stock, Ships Fast

The PBM603FXE20 from Sanyo Denki features a 60mm flange size and a single D-shaped output shaft. Part of the PB SANMOTION Servo Motors, it provides a maximum stall torque of 1.3 N·m and rotor inertia of 0.4 ×10^-4 kg·m². It operates at 24/48 V DC and includes a 2000 P/R incremental encoder.

Weighing 0.85 kg, it maintains IP40 protection. The operating temperature range spans -10°C to +40°C. It supports 14.7 N thrust load.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Allowable Radial Load

167 N

Allowable Thrust Load

14.7 N

Connection Type

Lead wire, with connector (encoder, power line)

Encoder Resolution

2000 P/R

Encoder Type

Incremental

Maximum Stall Torque

1.3 N·m

Motor Flange Size

60mm

Motor Length

70.3mm

Motor Mass

0.85 kg

Operating Humidity Range

20% to 90% RH

Operating Temperature Range

-10°C to +40°C

Output Shaft Type

D-shaped

Protection Rating

IP40

Rotor Inertia

0.4 × 10^-4 kg·m²

Single/dual Shaft

Single shaft
