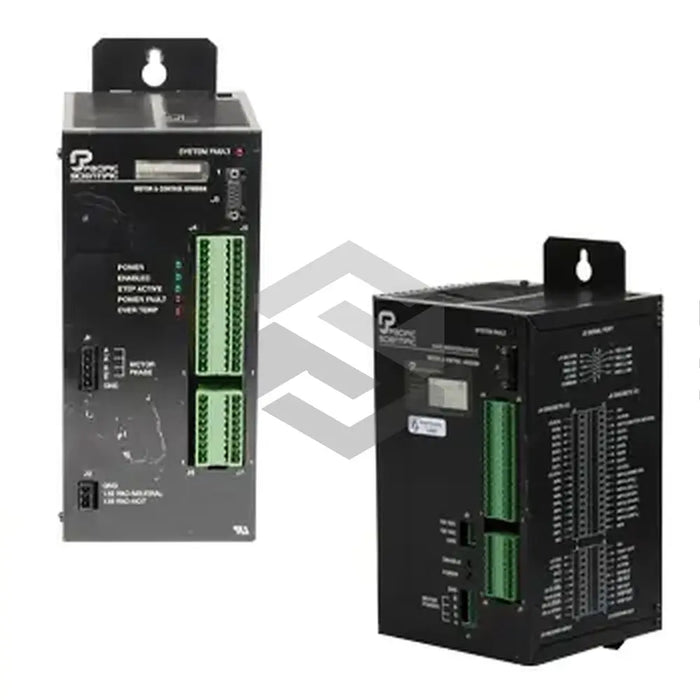

S image of 5645-027

5645-027

by Pacific Scientific
$616.30 - $616.30
$616.30
$616.30 - $616.30
$616.30

In Stock, Ships Fast

The Pacific Scientific 5645-027 is a stepper motor drive designed to convert step and direction inputs into motor winding currents, effectively controlling a bipolar two-phase step motor. This device is equipped with a bipolar chopper drive operating at a frequency of 20 kHz, as well as short circuit and shunt regulator circuitry for safety and voltage regulation. It also provides optical isolation for the direction, step, enable and reset command lines while its mid-range instability control unit eliminates torque loss and reduces motor stalling. The 5645-027 affords a step range from ½ to 1/125 coupled with up to 25,000 revolutions and the stepper is a standard 1.8o unit capable of full stepping or micro-stepping. Other key features include idle current reduction, which cuts down the motor winding current by 50%, and a current setting, which sets the current supplied by the motor.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Pacific Scientific

Product Type

Stepper Motor Drives

Model

5645-027

Main Function

Convert step and direction inputs to motor winding currents

Motor Compatibility

Bipolar two-phase step motor

Features

Bipolar chopper drive, Short circuit protection circuitry, Shunt regulator circuitry, Mid-range instability control, Optical isolation circuitry

Bipolar Chopper Drive Frequency

20 kHz

Shunt Regulator Circuitry Voltage

200 volts

Step Range

½ to 1/125 and up to 25,000 revolutions

Stepper Standard

1.8o

Stepping Options

Full stepping or micro-stepping

Current Features

Idle current reduction, Current setting

Idle Current Reduction

Reduction in the motor winding current by 50% one second after the final input step pulse.
