BA3624-7005-9-56BC

Original price $0.00 - Original price $0.00
Original price
Request a Quote
$0.00 - $0.00
Current price Request a Quote

Request a quote

Add a Message

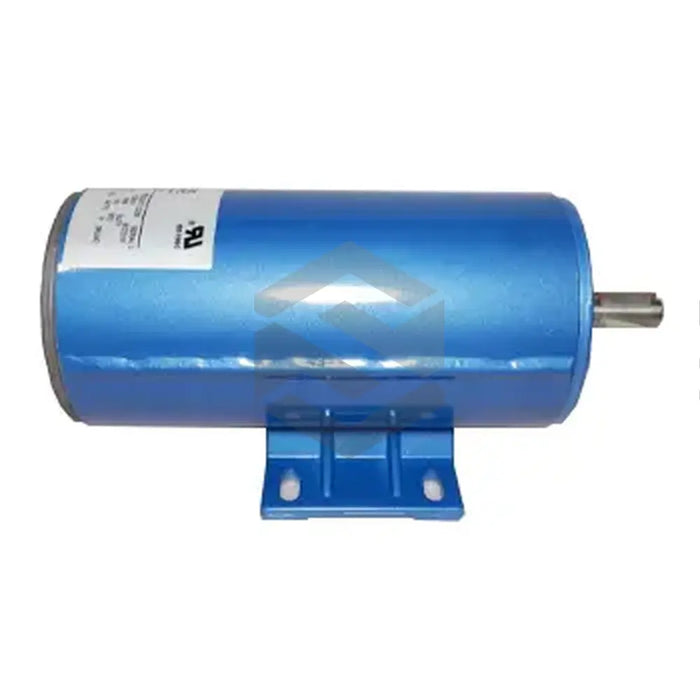

Produced by Pacific Scientific, the BA3624-7005-9-56BC is a member of their low-voltage motors from the PMDC series, renowned in the motion control industry. Conforming to 56C NEMA standards, this PMDC motor brings together the benefits of an H-class insulation and natural convection cooling due to the TENV housing structure. Its constant force brush springs ensure stable data transmission by reducing sparks or distortion, with removable brushes for easy replacement. The motor leverages a permanent magnet field for increased performance with its smaller size, less weight and a wider speed range. The power output is 1/3 HP and it delivers a top speed of 1750 RPM at 24 volts. A continuous current of 27 amperes and a torque of 12.0 pound-inch are offered, with a rotor inertia of 4.0 lb-inch and resistance of 0.04 ohms. The motor measures 9.13 inches in length and weighs 19 pounds.

Contact Us

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Product Part Number


BA3624-7005-9-56BC

Manufacturer


Pacific Scientific

Product Type


Low-voltage motors

Frame Standards


56C NEMA

Housing Construction


TENV NEMA

Cooling Method


Natural Convection

Insulation Class


H-Class

Operating Temperature


150 degree Celsius

Maximum Temperature Tolerance


220 degree Celsius

Constant Force Brush Springs


Yes

Removable Base


Yes

Permanent Magnet Field


Yes

Power Output


1/3 HP

Maximum Speed


1750 RPM

Voltage


24 volts

Continuous Current


27 amperes

Continuous Torque


12.0 pound-inch

Rotor Inertia


4.0 lb-inch

Resistance


0.04 ohms

Product Length


9.13 inches

Product Weight


19 pounds
