K33HLHJ-LNK-NS-00
Original price
$1,061.31
-
Original price
$1,812.50
Original price
$1,812.50
$1,061.31
-
$1,812.50
Current price
$1,812.50

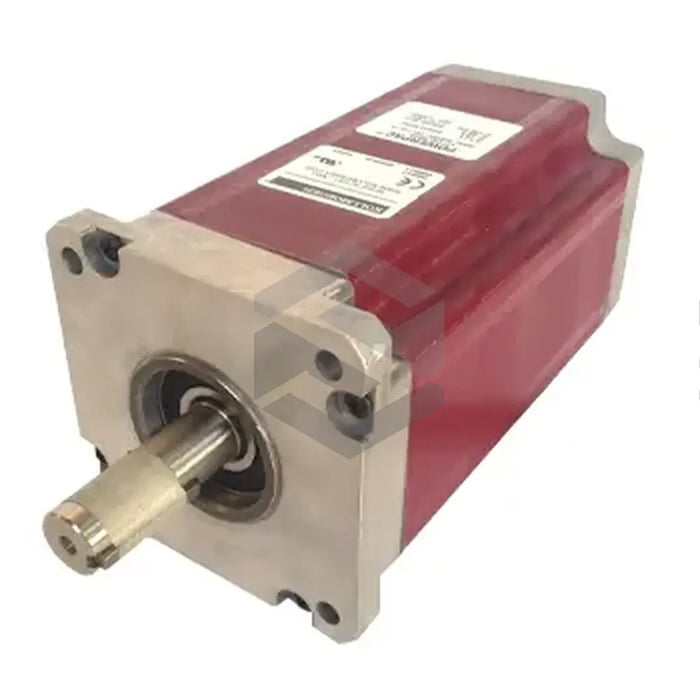

The K33HLHJ-LNK-NS-00, a product of Pacific Scientific, is a robust K series hybrid stepper, despite its compact size. Its unique rotor design enables the production of vast amounts of torque and high acceleration. The stepper motor features a high-powered NEMA mounting configuration sized at a frame 34. Using acclaimed Sigmax® technology, the K33HLHJ-LNK-NS-00 yields around 25% more torque compared to the N series, and running cooler under the same drive parameters. It promises a holding torque up to 5700 oz-in (356 lb-in), outdoing its competitors in torque per frame size. It also maintains high torque at moderate speed, with a rated current and resistance of 8.1 A and 0.52 Ohm per winding. It comes with multiple shaft configuration options, high standard windings, two-phase design, and options for encoder mounting. It comprises 3 rotor and 4 lead parallel winding leads, with a single key and/or straight key shaft configuration and IP 44 Protection class.
