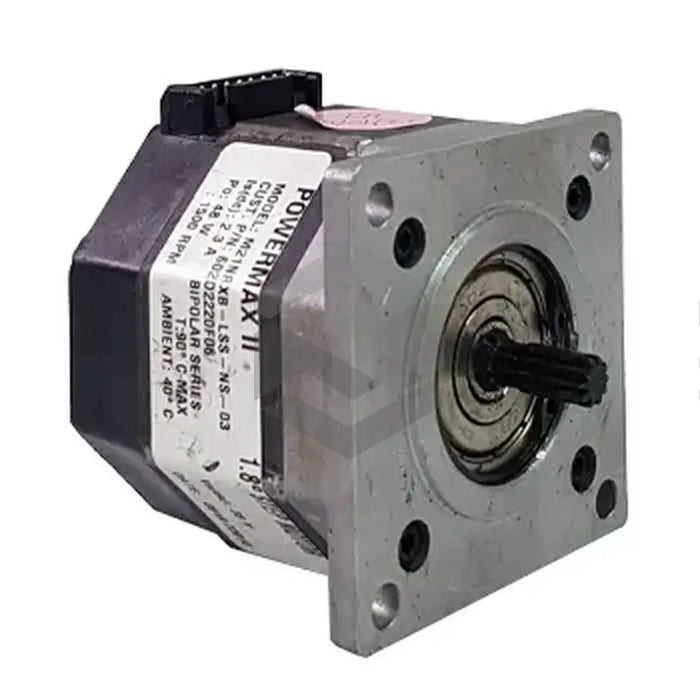

P image of M21NRXD-LSS-M1-02

M21NRXD-LSS-M1-02

by Pacific Scientific
$5,317.87 - $5,317.87
$5,317.87
$5,317.87 - $5,317.87
$5,317.87

Available, Shipping Varies

The M21NRXD-LSS-M1-02, a hybrid stepper motor produced by Pacific Scientific, incorporates a precision-ground rotor ID and honed stator ID, with a standard D type winding. The construction includes a provision for an encoder and a laminated one-stack rotor. The motor features a high retention force mating connector due to the integral electrical receptacle, a molded stator assembly, and NEMA type mounting. The bearings offer four times the lifespan of standard NEMA 23 motors and the rotor's lamination ensures efficient operation. The motor includes a concentric air gap, large bearings for reduced downtime, optional green/yellow ground wires, and Class B insulation. With an IP 23 protection class, an angle of 1.8° per full step, and a maximum radial load of 20lbs, this product, adorned with rare earth neodymium-iron-boron magnets, ensures extended durability and enhanced heat dissipation within the ambient temperature range of -20°C to +40°C.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Pacific Scientific

Product Model

M21NRXD-LSS-M1-02

Type of Winding

D Type

Construction Style

Regular

Equipment

Provision for Mounting an Encoder

Motor Feature

Laminated One-Stack Rotor

Connector

High Retention Force Due to Integral Electrical Receptacle

Design

Molded stator assembly + concentric air gap

Mounting

NEMA type

Bearings Lifespan

400% more than standard NEMA 23 motors

Bearings Size

30mm

Protection Class

IP 23

Full Step Angle

1.8°

Maximum Radial Load

20lbs in the middle of the standard shaft extension

Sequence Number

02

Overall Length

78.8mm

Phases

2

Lamination

With rare earth neodymium-iron-boron magnets

Thermal Dissipation

Yes due to Exposed Lamination

Shape

Octagonal

Ambient Temperature Range

-20°C to +40°C

Distribution Method

Freight Forwarders
