M image of PMA21B-10100-00

PMA21B-10100-00

by Pacific Scientific
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message

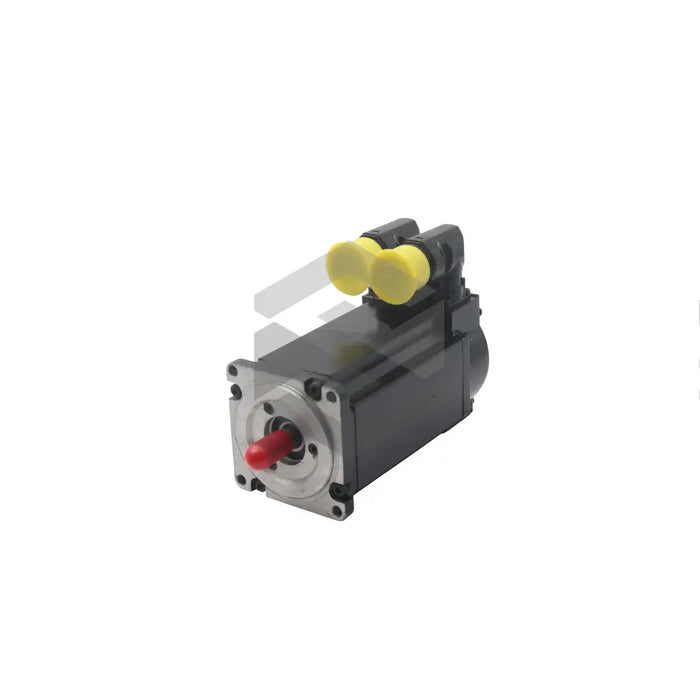

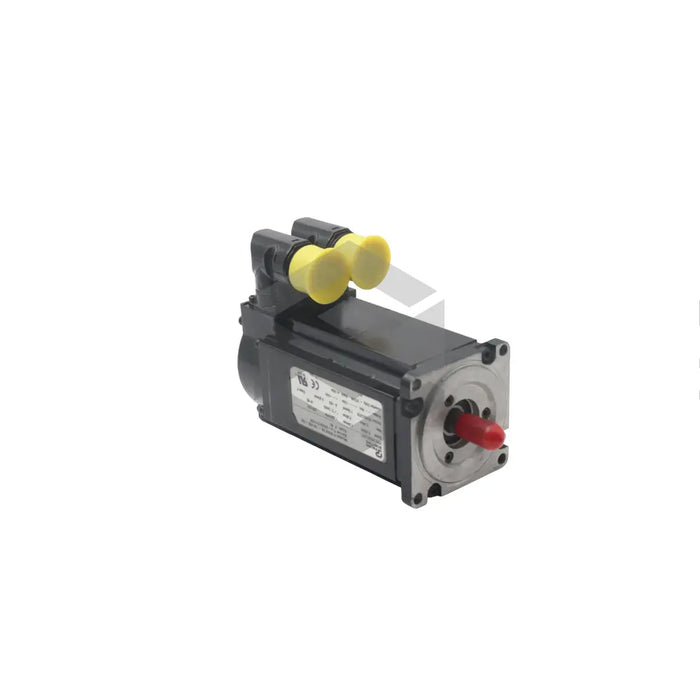

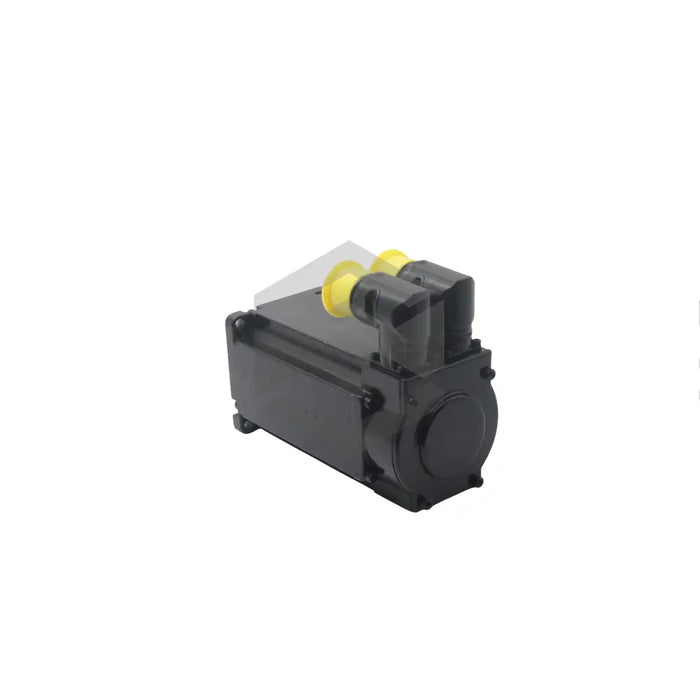

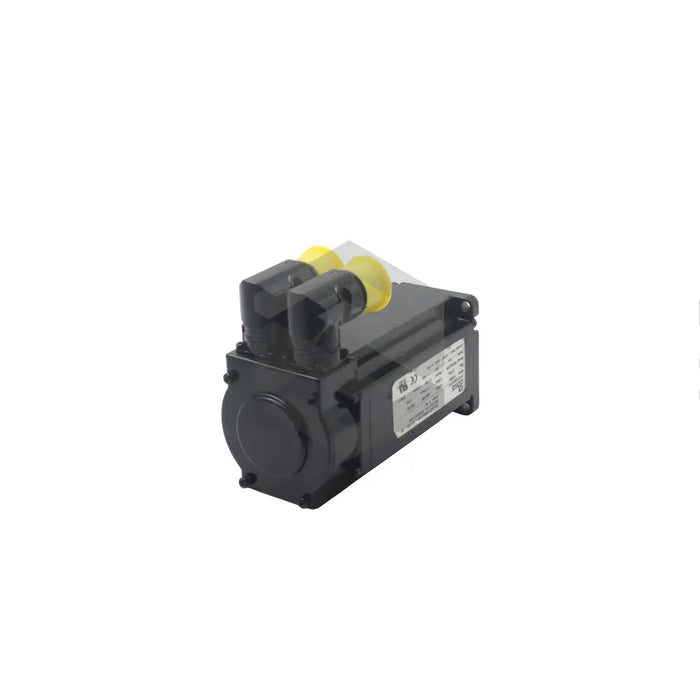

The PMA21B-10100-00 is a reliable brushless servomotor produced by Pacific Scientific - Kollmorgen. As one of the smallest motors in the PMA-range, its design ensures extended lifespan and reduced maintenance demands. With a square frame size of 70mm and weight of 1.5kg, it provides a substantial torque capacity of 1.9Nm under intermittent operation and maximum speed of 9,250rpm. This motor utilizes a 'B' type winding, offering a maximum voltage range of 240V AC. Its compact design combined with efficient performance makes it an optimum choice for systems with limited space. It comes with a standard alignment resolver and a 6 pole-power, right-angle connector. The PMA21B-10100-00 does not include a holding brake but is distinguished by impressively high protection against both dust and water.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Pacific Scientific

Product Type

Servomotor

Model

PMA21B-10100-00

Frame Size

70mm

Weight

1.5kg

Rotor Inertia

26kgm2

Stack Type

Single

Winding Type

B

Voltage Range

240V AC

Stall Current

2.7A

Maximum Speed

9250rpm

Nominal Speed

6050rpm

Continuous Torque

0.5Nm

Torque at Zero Speed

0.63Nm

Maximum Torque

1.9Nm

Maximum Current

5.4A

Shaft Type

Closed Keyway

Key Design

DIN42995 N

Hold Brake

None

Resolver Type

Standard Alignment

Connector Type

Right-angle 6 pole-power, 12 pole-sensor – 0-degree coded

Protection Grade

High against dust and water
