PMB31B-101114-00

Name: PMB31B-101114-00
Brand: Pacific Scientific
Price: 632.36 USD
Availability: InStock

by Pacific Scientific

$632.36 - $632.36

$632.36

$632.36 - $632.36

$632.36

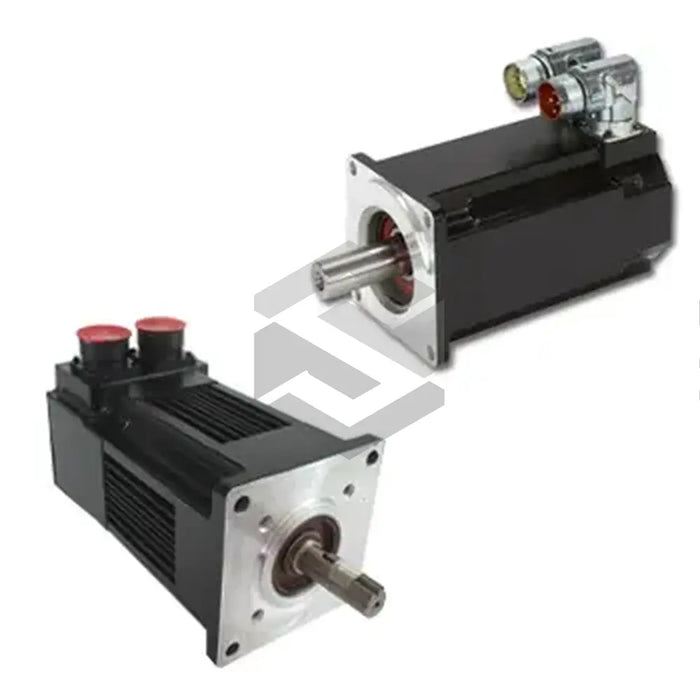

The PMB31B-101114-00 from Pacific Scientific features resolver feedback and neodymium-iron-boron magnets. Part of the PMB Brushless Servomotors series, it delivers 0.45–1.40 Nm continuous torque and reaches 11,000 RPM. This NEMA Size 34 motor includes a 2048 ppr encoder.

It has an IP40 rating, works on 240 VAC/320 VDC, and stalls at 2.7 ARMS. Weighing 2.7 kg, its thermal time constant is 28 min. Low inertia boosts dynamic response.

Contact Us

Email: sales@servosupplier.com

Phone Number: 1-888-551-3082

International: 1-919-443-0207

Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Connector Type

Flying leads with AMP connectors

Motor Size

NEMA Size 34

Product Type

PMB Series Brushless Servomotor

Shaft Design

Round

Stack Length Multiple

Nominal Stall Current @240Vac max

2.7 ARMS

Continuous Torque Range

0.45 to 1.40 Nm

Feedback

Resolver Feedback

Inductance (line-to-line)

2.5 - 4.8 mH

Material For Magnets

Neodymium-iron-boron

Maximum Operation Voltage

240V AC / 320V DC

Rated Speeds

Up to 10,000 RPM

Resistance (line-to-line)

4.1 - 5.4 Ohms

Thermal Resistance

1.39 to 1.10 deg. C/Watt

Typical Rated Speed @ 240v Ac Or 320v Dc

Up to 11,000 RPM

Typical Rated Speed @ 36v Ac Or 48v Dc

1,000 to 6,450 RPM

Typical Rated Torque @ 240v Ac Or 320v Dc

Up to 0.41 Nm (3.6 lb.-in.)

Typical Rated Torque @ 36v Ac Or 48v Dc

0.2 - 0.5 Nm (2.0 - 4.4 lb.-in.)

Weight

1.2 (2.7 lbs) to 2.9 kg (6.4 lbs)
