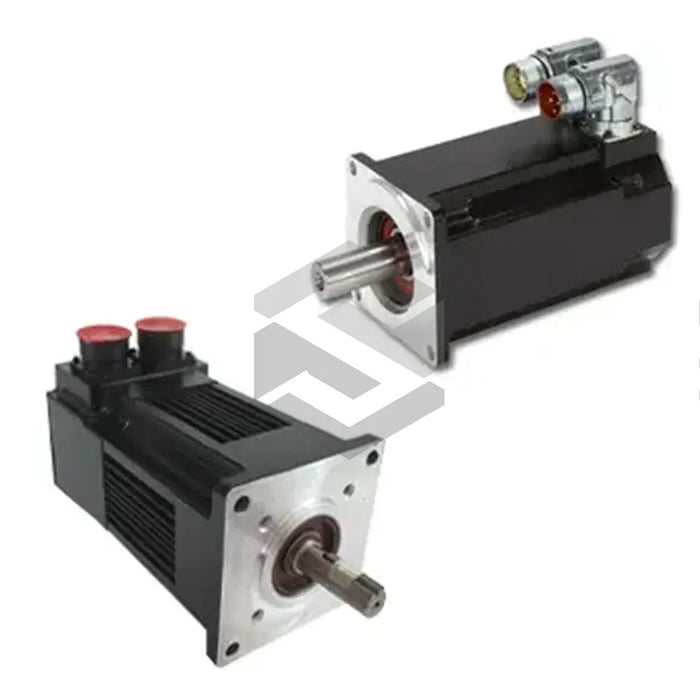

S image of PMC5FA-1SSS3-02

PMC5FA-1SSS3-02

by Pacific Scientific
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message

The Pacific Scientific PMC5FA-1SSS3-02 servomotor from the PMB Brushless Servomotors series is a high-performance synchronous servomotor featuring a 4-pole anti-cog stator and weighing 18.0 kg. It delivers a nominal Rated Torque of 3.6 Nm (32.2 lb-in) with a Torque Constant of 0.4 Nm/A RMS and a Voltage Constant of 0.24 V RMS/rad/s (25.1 V RMS/kRPM). Thermal management is ensured by a built-in Integrated Thermostat and a Thermal Time Constant of 36 min. Electrical performance includes line-to-line inductance of 2.2 mH, continuous stall current of 18.2 A RMS, and peak current of 54.6 A RMS. Supported bus voltages are 240 V AC (6000 RPM) and 320 V DC (4500 RPM). Feedback is provided via Built-in resolver with optional N-series encoder, and standard metric mounting (English optional) enables flexible installation.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Customization

PTC Thermistor

Line‑to‑line Inductance

2.2 mH

Integrated Thermostat

Included

Voltage Constant

0.24 V RMS/rad/s (25.1 V RMS/kRPM)

Resolver Feedback

Built‑in resolver

Encoder Feedback Option

N‑series encoder

Mounting Options

Metric standard; English optional

Motor Type

Synchronous servomotor

Rated Torque

3.6 Nm (32.2 lb‑in)

Rated Speed at 320 V DC

4500 RPM

Torque Constant

0.4 Nm/A RMS

Thermal Time Constant

36 min

Continuous Stall Current

18.2 A RMS

Bus Voltage Operation

240 V AC, 320 V DC

Motor Weight

18.0 kg (39 lb)

Rated Speed at 240 V AC

6000 RPM

Current at Peak Torque

54.6 A RMS

Pole Count

4 poles

Stator Design

Anti‑cog
