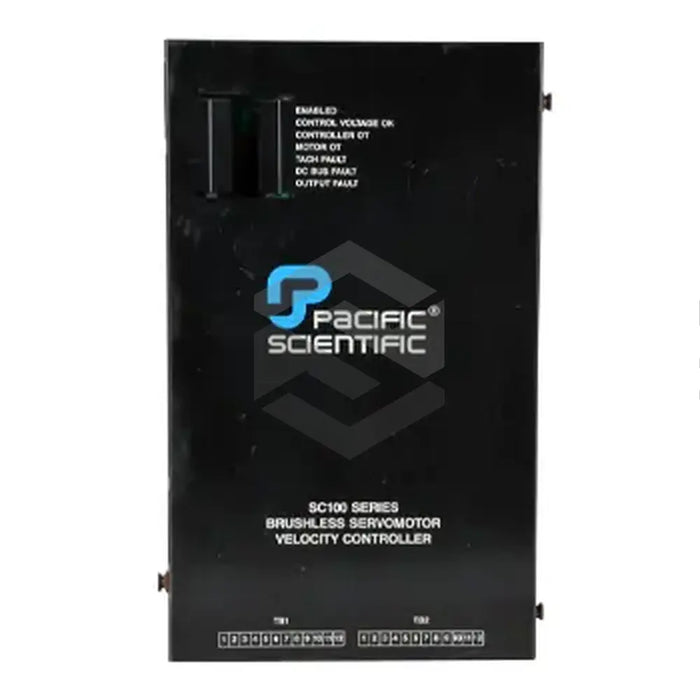

SC155-046-05

Name: SC155-046-05
Brand: Pacific Scientific
Price: 6662.5 USD
Availability: InStock

by Pacific Scientific

$6,662.50 - $6,662.50

$6,662.50

$6,662.50 - $6,662.50

$6,662.50

The SC155-046-05 is a versatile servo controller supporting 230 VAC 3-phase or single-phase input and offers overcurrent and inrush current protection. Manufactured by Pacific Scientific as part of the SC100 Brushless Servo Controllers series, it features ±10 V differential velocity command input and a 0.5–5 V torque limit input. It tolerates up to 95% non-condensing humidity, operates to 1500 m altitude and uses a 230 VAC axial cooling fan.

Contact Us

Email: sales@servosupplier.com

Phone Number: 1-888-551-3082

International: 1-919-443-0207

Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Commutation Inputs

Tachsyn or Digital (Hall-Effect, CMOS)

Cooling Fan

Operates at 230VAC, 0.08A current

Current Monitor Output

+5 VDC Full Scale, 0.083 V/A

Enable Input

Close Contact, 12 mA Max, 12 V

Fault Output

Relay, 24 VDC 250 mA Max, Floating

Input Voltage

230 VAC 3-Phase (Single-Phase Supported)

Loop Gain Adjustment

Potentiometer R72, AC Loop Gain

Operating Mode Selection

Jumper Select Voltage/Current Input

Power Supply Outputs

+12 VDC/−12 VDC, 100 mA Max Each

Protection

I*t, Overcurrent, Inrush Current Limit

Torque Limit Input

0.5–5 V, 10–100% Peak Current

Velocity Command Gain Adjust

CMD GAIN Potentiometer R76

Velocity Command Input (current)

4–20 mA, Unidirectional

Velocity Command Input (voltage)

±10 V Differential, 10K Ohm Input

Voltage Monitor Output

+7.5 VDC Full Scale, 16 mV/VLL Output
