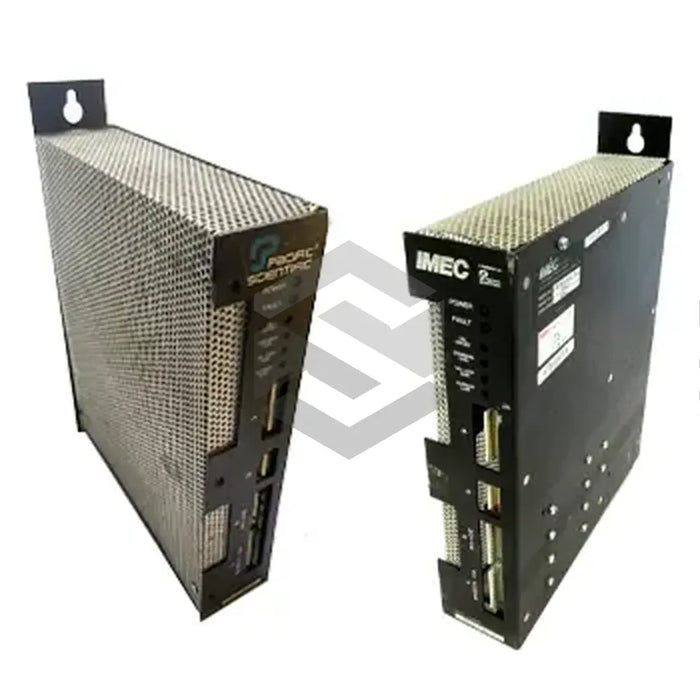

S image of SC402-012-T4

SC402-012-T4

by Pacific Scientific
$1,806.72 - $1,806.72
$1,806.72
$1,806.72 - $1,806.72
$1,806.72

Available, Shipping Varies

The SC402-012-T4, a product by Pacific Scientific, is an advanced control unit, meticulously designed to offer extraordinary servo performance by employing high-frequency PWM current control. It is a transformerless control with direct 115/230 VAC line operation, featuring optically and magnetically isolated output stages to improve reliability while minimizing crosstalk and disturbances from ground loops. The unit is well-protected, equipped with fusing, MOV-protected input circuitry, and multiple protection circuits to guard against thermal overload, out of tolerance control voltages, and bus overvoltage. This equipment accepts both 115/230 VAC (+10, -15%) and 1 or 3 phase, 47-63 Hz input while offering a peak output current of 7.0A. It is capable of operating Brushless Servo Motors and Permanent Magnetic Brushless Servo Motors, among others, attaining four quadrant control in standalone mode or as part of a torque or velocity block, with appropriately equipped motors.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Pacific Scientific

Product Code

SC402-012-T4

Control Type

Transformerless

Operation Voltage

Direct 115/230 VAC line

Output Stage

Optically/Magnetically isolated

Features

Integral fusing, MOV protected input circuitry, peak current limit adjustment, wide range of velocity loop dynamic adjustment

Protection

Line-ground and line-line shorts, thermal overload, out of tolerance control voltages, bus overvoltage

Input Voltage

115/230 VAC (+10, -15%) and 1 or 3 phase, 47-63 Hz

Nominal Bus Voltage

320 VDC for 230 VAC Input and 160 VDC for 115 VAC Input

Output Current peak

7.0 A

Continuous Output Current

3.5 A with 230 VAC input and 4.2 A with 115 VAC input

Output Power

2000 W peak with 230 VAC input and 1000 W peak with 115 VAC Input

Motor Compatibility

Brushless Servo Motors, Permanent Magnetic Brushless Servo Motors or other 3-phase

Control Capability

Four quadrant control of each PM Brushless Servo motor

Configuration

Stands alone; can be used with each Brushless servo motor as a torque block or a velocity block.
