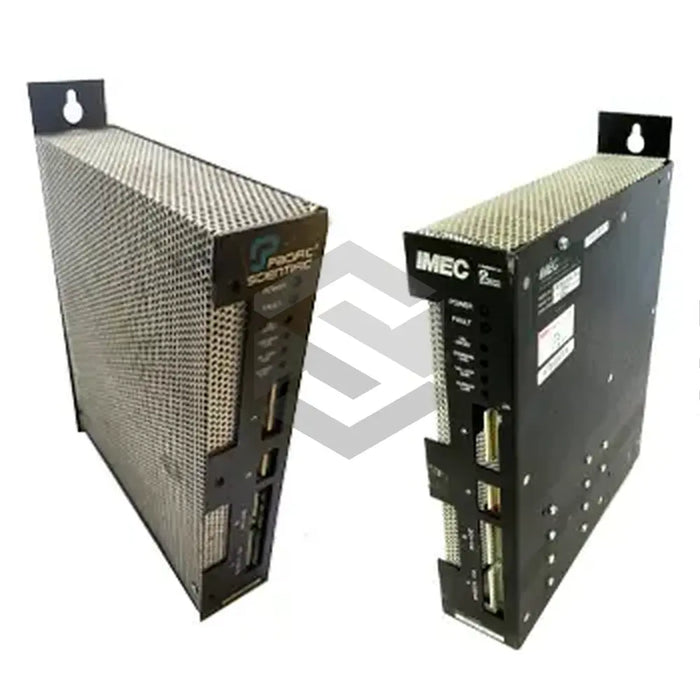

S image of SC402-023-T4

SC402-023-T4

by Pacific Scientific
$4,366.35 - $4,366.35
$4,366.35
$4,366.35 - $4,366.35
$4,366.35

In Stock, Ships 1 - 3 Days

The SC402-023-T4 from Pacific Scientific is part of the renowned 400 Series of Brushless Servo Controllers. Primarily used to control Pacific Scientific's Permanent Magnetic Brushless Servo Motors, this unit offers a four-quadrant control. With over 90% efficiency at rated continuous power, it delivers a peak power of 1500 W and 20W continuous power, courtesy of its shunt regulator. It has a form factor of less than 1.01 and a current loop bandwidth of up to 3 kHz. The SC402-023-T4 also allows for nearly zero adjustable velocity offset and a velocity input command of +/-10V. For operational safety and ease, the servo motor controller is designed with a variety of protective circuits. It hosts plug-in connectors on its front panel for power connections and command interface. The unit must be mounted vertically, with three slots provided for this purpose.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Pacific Scientific

Product Code

SC402-023-T4

Product Series

400 Series of Brushless Servo Controllers

Motor Compatibility

Permanent Magnetic Brushless Servo Motors

Control

Four quadrant control

Product Type

Independent unit

Peak Power

1500 W (0.3 seconds)

Continuous Power

20W

Efficiency

Greater than 90% (@ rated continuous power)

Form Factor

Less than 1.01

Current Loop Bandwidth

3 kHz maximum

Velocity Offset

Adjustable to zero

Velocity Offset Drift

50 uV/C typ.

Velocity Input Command

+/-10V

Output Ripple Frequency

20 kHz

Fault Output

30VDC

Mounting

Vertically (3 slot provision)

Front Panel Connectors

Plug-in connectors

Command and Feedback Signal Connections

8 contact and 15 contact plug-in connectors (0.1” contact centers)

Power Connections

10 contact plug-in connectors (0.156” contact centers)

Protection Circuits

Present

Additional Features

Shunt regulator, custom compensation, noise reducing output toroid, safety cover.
