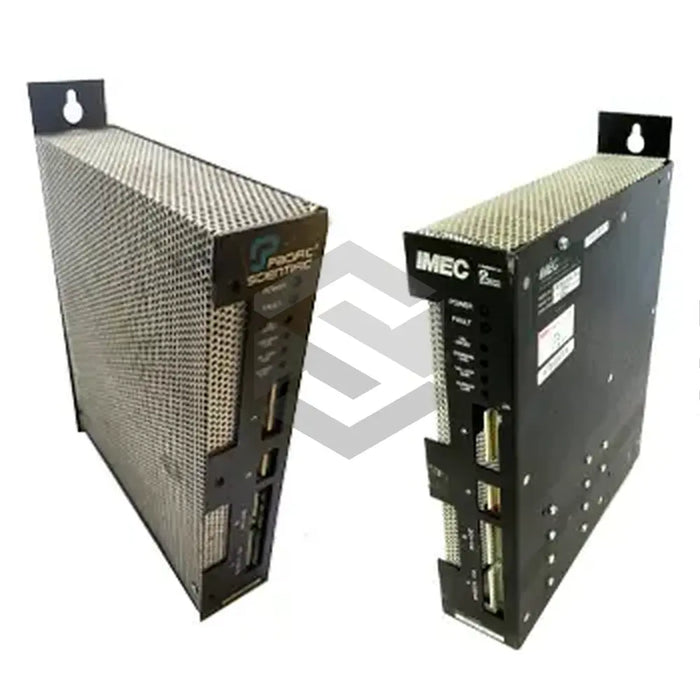

S image of SC403-030-T4

SC403-030-T4

by Pacific Scientific
$2,506.48 - $2,757.13
$2,757.13
$2,506.48 - $2,757.13
$2,757.13

In Stock, Ships 1 - 3 Days

The Pacific Scientific SC403-030-T4 is a high-voltage brushless servo controller, designed with sturdy components for durability and performance. Suitable for varied applications, it operates efficiently in diverse industries. The device accepts an input voltage of 115VAC or 230VAC (+10, -15%), with a frequency of 47 - 63 Hz for either single or three-phase power sources. The maximum current allowance stands at 15 Amps, maintaining a continuous flow of 7.5 Amps at both power levels. Furthermore, the servo controller features a nominal bus voltage of 320 VDC at 230 VAC input and 160 VDC at 115 VAC input. For optimal performance, the device's preferred humidity range is 10 to 90% non-condensing and an installation level not exceeding 1500m above sea level. It functions best at temperatures of 0-50°C (full rating) and 50-60°C (derated data).

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Pacific Scientific

Product Type

Brushless Servo Controller

Model

SC403-030-T4

Input Voltage

115VAC or 230 VAC (+10, -15%)

Phases

1 or 3

Frequency

47 - 63 Hz

Maximum Current

15 Amps

Continuous Current at 230 VAC/115 VAC

7.5 Amps

Nominal Bus Voltage

320 VDC at 230 VAC input and 160 VDC at 115 VAC input

Optional Shunt Regulator Peak Power (0.3 seconds)

6000 Watts

Continuous Power

40 W

Output Power

2250 W at 115 VAC input and 4500 at 230 VAC input

Humidity

10 to 90% (non-condensation)

Peak Installation Height

1500 meters

Ambient Storage Temperature

-55 to 70C

Operating Temperature

0 to 50C (full rating), 50 to 60C (derated data)
