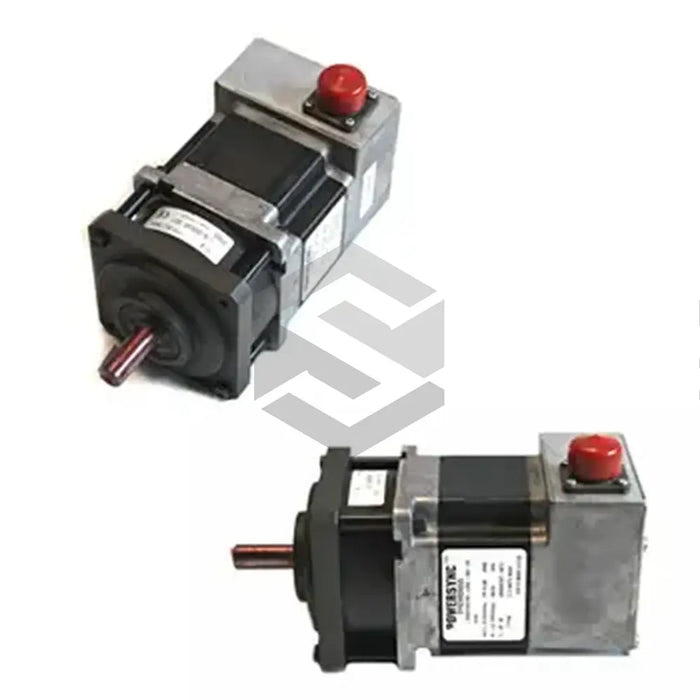

S image of SN32HMYW-LNK-NS-00

SN32HMYW-LNK-NS-00

by Pacific Scientific
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The SN32HMYW-LNK-NS-00 is a synchronous stepper motor created by Pacific Scientific, renowned for their durable and efficient motors designed for control and robotics systems. This product is part of the SN series and adheres to international performance and construction standards. The motor boasts a 3.38 inch NEMA 34 square frame, two rotor stacks for consistent signal transfer, a Splash proof terminal board, a single shaft with straight key, and a 3-Lead winding laminated rotor, all contributing to its light weight of less than 9 pounds. The motor yields a low-speed performance at a nominal input voltage of 120Vac, reaching up to 60RPM with 50Hz vibration. Capable of reaching a maximum torque of 3.39 Nm quickly, it offers a low-rotor inertia of 38 oz-in-s2, with other contributing factors including 38 ohms phase resistance and an RMS of 0.47. It is recommended to utilize a 4 microfarad capacitor and a 50-watt resistor to prevent reversing torque.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Pacific Scientific

Product Type

AC Synchronous Stepper Motor

Part Number

SN32HMYW-LNK-NS-00

Series

SN

Frame Type

NEMA 34

Frame Side

3.38 inches

Features

Heavy duty mounting, Splash proof terminal board, 2 rotor stacks, 3-Lead winding, laminated rotor, single shaft with straight key

Weight

Under 9 pounds

Performance Speed

60 RPM at 120Vac, 50Hz vibration

Max Torque

3.39 Nm

Max Pull-out Torque

4.87 Nm

Rotor Inertia

38 oz-in-s2

Rated Inertia

0.29 oz-in-s2

Phase Resistance

38 ohms

RMS

0.47

Additional Requirements

4 microfarad capacitor featuring 4.47 volt-AC rating, 50-watt resistor with 100 ohms resistance.
