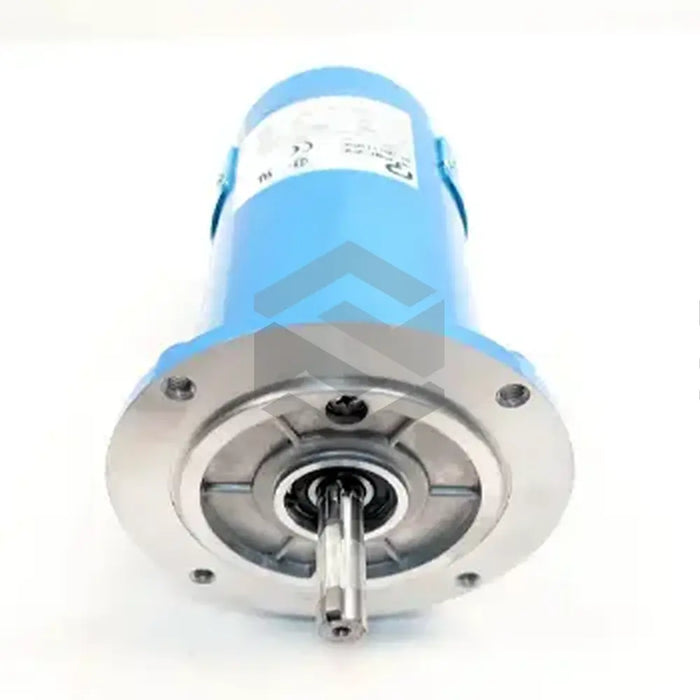

P image of SR3624-8291-7-56BC-CU

SR3624-8291-7-56BC-CU

by Pacific Scientific
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The PMDC SR3624-8291-7-56BC-CU is a 1/4HP permanent magnet DC motor, originally manufactured by Pacific Scientific, now taken over by Kollmorgen Inc. It operates at a 90V DC power, handling continuous currents and torques of 2.7A and 9 lb-in respectively, with an operational speed of 1750 RPM. The device weighs 18 pounds standalone and 20.2 pounds inclusive of accessories. Exemplifying longevity and consistent performance, it features H-class insulation for winding, easily replaceable fused commutator, and constant force brushes. The rotor is polyester impregnated for better electrical integrity, paired with large, durable sealed bearings. The product is designed for consistent industrial use, with an anti-cog permanent magnet constituting the stator. It's a UL recognized and CA certified device, designed for low-speed applications in industrial automation. Options to install third-party tachometers are also available.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Pacific Scientific

Product Type

PMDC Motor

Model Number

SR3624-8291-7-56BC-CU

Power

1/4HP

Operating Voltage

90V DC

Continuous Current

2.7A

Continuous Torque

9 lb-in

Rated Speed

1750 rpm

Weight without Accessories

18 pounds

Weight with Accessories

20.2 pounds

Insulation Class

H

Enclosure Type

TENV

Brush Maintenance Feature

Replaceable

Rotor Inertia

4 lb-in

Length

9.13 inches

Rotor Armature Type

Polyester Impregnated

Bearing Type

Large Sealed Bearings

Stator Type

Anti-cog Permanent Magnets

Over Current Threshold

54 amperes

Compliance

NEMA Standard

Tachometer Installation Options

Available

Recommended Use

Low Speed Applications
