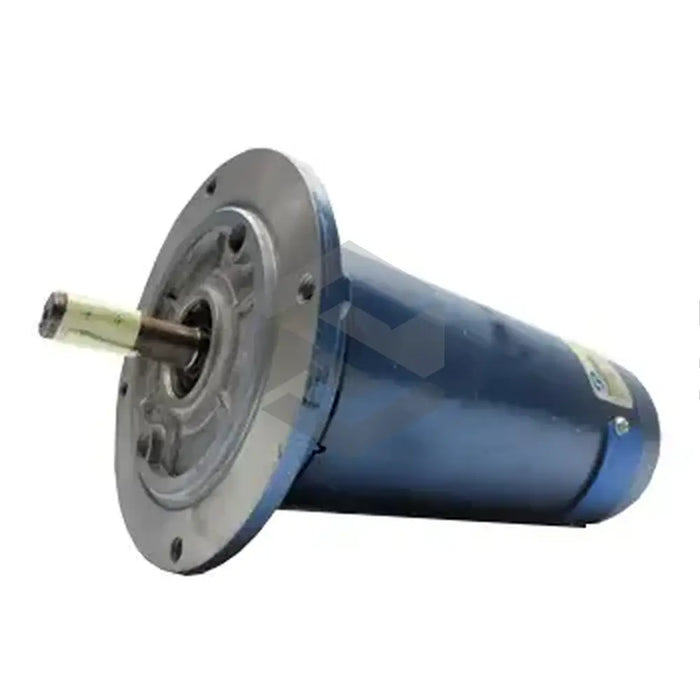

P image of SR3640-8293-7-56HC

SR3640-8293-7-56HC

by Pacific Scientific
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The Pacific Scientific SR3640-8293-7-56HC permanent magnet motor from Kollmorgen is designed to meet users' machine operation needs with durable efficiency. This robust, powerful motor has a NEMA C face, two replaceable brushes (model YP00572), is UL-recognized, BISSC-certified (under standard 29, authorization number 301), conforms to NEMA MG1-1.26.5 waterproof designation, and IP65. Operating at an optimal speed of 1750 RPM, this motor is insulated under class H, and weighs approximately 26 pounds with a length of 12.20 inches. It delivers continuous torque at 18 lb-in and a continuous current of 5.1 A at standstill, a peak current of 67 A, and a torque constant of 4.05 lb-in/A. It features an inductance value of 4.38 mH, resistance of 0.95 Ohms, and inertia of 6.3 lb-in.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Pacific Scientific Kollmorgen

Product Type

Permanent Magnetic Motor

Model

SR3640-8293-7-56HC

Base

Removable

Face

NEMA C

Brushes

Two (Recommended Model YP00572)

Insulation Class

H

Certification

UL recognized, BISSC certified (Standard 29, Authorization number 301)

Waterproof Designation

NEMA MG1-1.26.5, IP65

Motor Speed

1750 RPM

Continuous Torque at Standstill

18 lb-in

Continuous Current

5.1 A

Peak Current

67 amps

Torque Constant

4.05 lb-in/A

Inductance Value

4.38 mH

Resistance

0.95 Ohms

Inertia

6.3 lb-in

Estimated Mass

26 lbs

Length

12.20 inches
