SRF3736-4983-84-5-56BC-CU
Original price
$1,895.33
-
Original price
$1,895.33
Original price
$1,895.33
$1,895.33
-
$1,895.33
Current price
$1,895.33

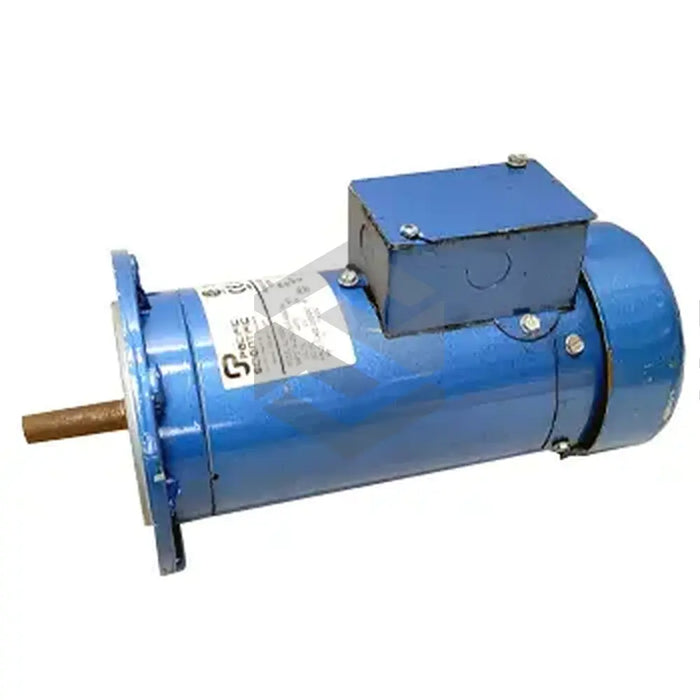

The SRF3736-4983-84-5-56BC-CU is a heavy-duty permanent magnet DC motor produced by Pacific Scientific. Its remarkable high-voltage input of 180 volts DC and impressive power output exceeding 559 watts sets it apart. The motor, designated under the internationally recognized product code FGS2750, offers continuous current and torque of 3.2 Amperes and 27.0 pounds per inch respectively, peaking at 26.0 amperes. Performance-wise, the motor also provides a resistance of up to 3.6 ohms, 8.9lb-inch inertia, and an inductance of 28.8mH. Its structural features include fan-cooling TEFC housing, NEMA 56C mounting, and an explosion-proof body with wash down construction that accommodates medium to high temperature environments, thanks to the H-class insulation that can withstand heat up to 150°C. Weighing 23 pounds, the SRF3736-4983-84-5-56BC-CU is a dependable industrial power solution.
