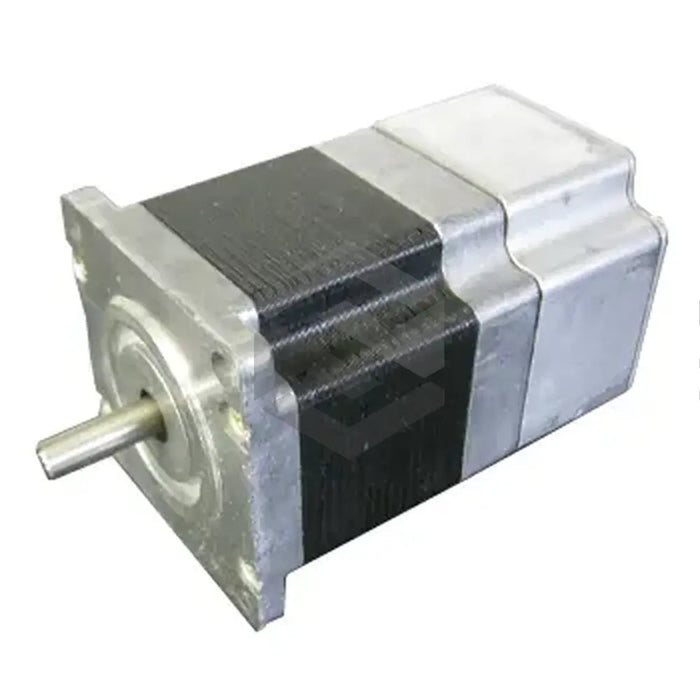

P image of T22NRHJ-LNN-NS-00

T22NRHJ-LNN-NS-00

by Pacific Scientific
$450.00 - $450.00
$450.00
$450.00 - $450.00
$450.00

In Stock, Ships 1 - 3 Days

The Pacific Scientific T22NRHJ-LNN-NS-00 is a high-torque, two-phase, T Series stepper motor, recognized for its robust performance, low input power and smooth microstepping, making it an affordable alternative to servomotors. It features an NPT L or M type terminal box construction and is designed for intermittent duty applications. This motor, enclosed in a square 2.25 inches frame, can function optimally in small spaces due to its optimized magnetics. The standard sequence unit hosts a laminated, two-stack length rotor with a J type winding and four leads. The double-ended shaft configuration lacks a rear extension and it can accommodate an encoder if required. Notably, it delivers 4.1 ADC rated current per phase, with 0.49 Ohms phase resistance and 2.5mH typical phase inductance, offering high acceleration for rapid movement of loads. This motor outperforms similar three and five-phase motors and is well-suited for high-performance applications.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Pacific Scientific

Product Code

T22NRHJ-LNN-NS-00

Series

T series

Motor Type

Stepper

Compatible Terminal Box

NPT L or M type

Key Features

Low input power, Smooth microstepping performance, Compatibility with various drivers

Alternative Uses

Cheaper alternative to servomotors

Motor Design

Two-phase

Mounting Configuration

NEMA 23

Frame

2.25 inches square rugged

Additional Features

Option to mount an encoder

Sequence Type

Standard sequence

Rotor Type

Laminated

Stack Length

2 stack

Winding Type

J type

Leads

Four

Leadwire Construction

Parallel connection

Shaft

Double-end, smooth configuration

ADC Rated Current

4.1

Phase Resistance

0.49 Ohms

Typical Phase Inductance

2.5mH

Additional Leads Specs

Four #22 AWG, minimum 12 inches size, 0.05 inch diameter
