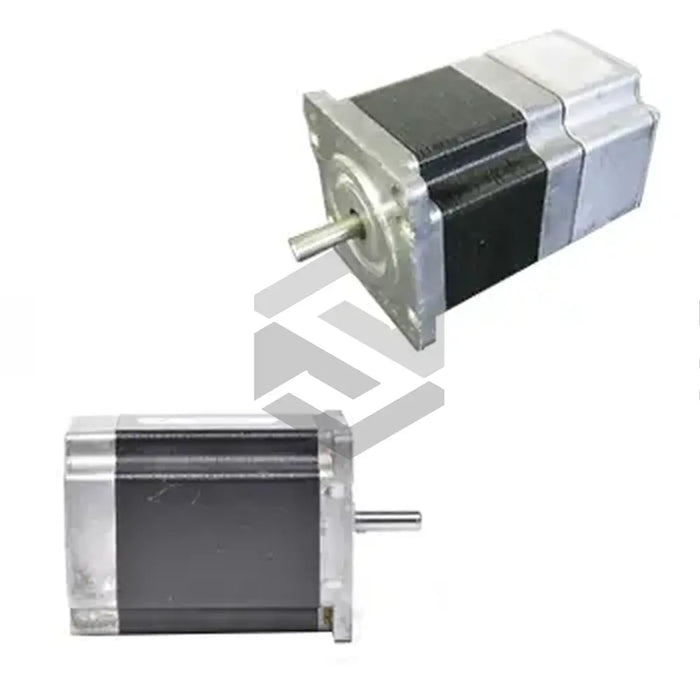

S image of T22NRHK-LSN-NS-02

T22NRHK-LSN-NS-02

by Pacific Scientific
$720.97 - $720.97
$720.97
$720.97 - $720.97
$720.97

Available, Shipping Varies

Manufactured by Pacific Scientific, T22NRHK-LSN-NS-02 is a prominent model amongst the company's lineup of brushless DC motors, which include servomotors, stepper motors, and vibrating motors. Falling under the T Series, this servomotor boasts advanced design and technology, informed by extensive research. This particular model is characterized by NEMA 23 Mounting with a 2.25 square frame size, and weighs only 1.0 kg (2.3 lbs). Notable technical specifications include a Holding Torque of 280 oz-in on a 2 phase power supply, a Detent Torque of 6 oz-in at a Rated Current of DC 6.6 Amps, and Thermal Resistance of 3.69 °C/watt, along with a Rotor Inertia value of 0.0056 oz/sq-in. Primarily employed for position control, servos like the T22NRHK-LSN-NS-02 are often used in remote-control applications like robotics and various industrial machinery.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Pacific Scientific

Product Code

T22NRHK-LSN-NS-02

Product Type

DC Servo Motor

Series

T Series

Configuration

NEMA 23 Mounting

Frame Size

NEMA 23 (2.25 square)

Net Weight

1.0 kg (2.3 lbs)

Rotor Stack

2

Holding Torque

280 oz-in or 1.98 N-m (on 2 phases power supply)

Rated Current

DC 6.6 Amps

Detent Torque

6 oz-in (0.0424 N-m)

Thermal Resistance

3.69 °C/watt

Rotor Inertia

0.0056 oz/sq-in or 0.0408-S2 (kg/sq-m x 10-3)

Applications

Remote control operations, robotics, industrial machinery
