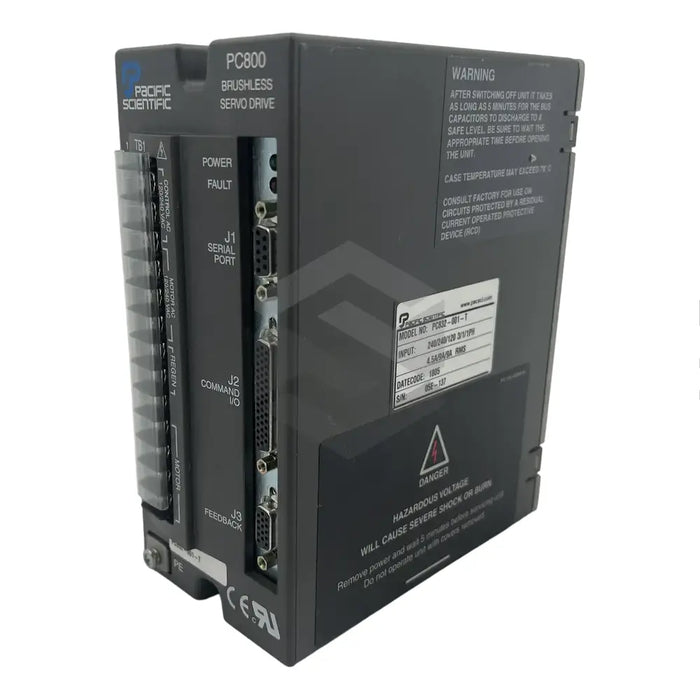

C image of PC832-001-T | Main (Front Left)

PC832-001-T

by Pacific Scientific
$2,057.35 - $6,453.20
$2,057.35
$2,057.35 - $6,453.20
$2,057.35
The Pacific Scientific High Performance Drive, PC832-001-T, is a rigorous, CE-compliant unit, conforming to the EN 50178:1997 standard and the EMC Directive. With efficient connections on terminals L1, L2, and L3, it operates via a 240/210 VAC. A dedicated motor case ground supports the ground connection and power shield of the motor, while terminals U, V, and W ensure vital 3-phase power output. Its nine-code serial port features varied inputs and outputs, including +5 VDC RTN, RS-232 TXD, RS-232 RXD, and RS-485 RXD, maximizing functionality. Furthermore, an adaptor can draw power from the +5 VDC output from the serial port, as long as the combined load current stays under 250 mA. The PC832-001-T prioritizes performance and user-friendly handling.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Pacific Scientific

Model

PC832-001-T

Compliance Standard

Emission limits according to chapter 6.3.1, low voltage directive according to CE guideline72/23/EEC, EN 50178:1997, EMC Directive

Operating Voltage

240/210 VAC

Connection Terminals

L1, L2, L3

Motor Case Ground

Present

Power Output Terminals

U, V, W

Serial Port Type

J1 with 9 ports coded J1-1-9

Port Functionality

J1-1: +5 VDC RTN/:Shield Common/shield, J1-2: RS-232 TXD, J1-3: RS-232 RXD, J1-4: +5 VDC output, J1-5: I/O RTN/+5 VDC RTN Common, J1-6: RS-485 TXD (+), J1-7: RS-485 TXD (-), J1-8: RS-485 RXD (+), J1-9: RS-485 RXD (-)

Power Source for Adaptor

Serial port with +5 VDC output; load current on J1-4, J2-14, & J3-10 must be less than 250 mA.
