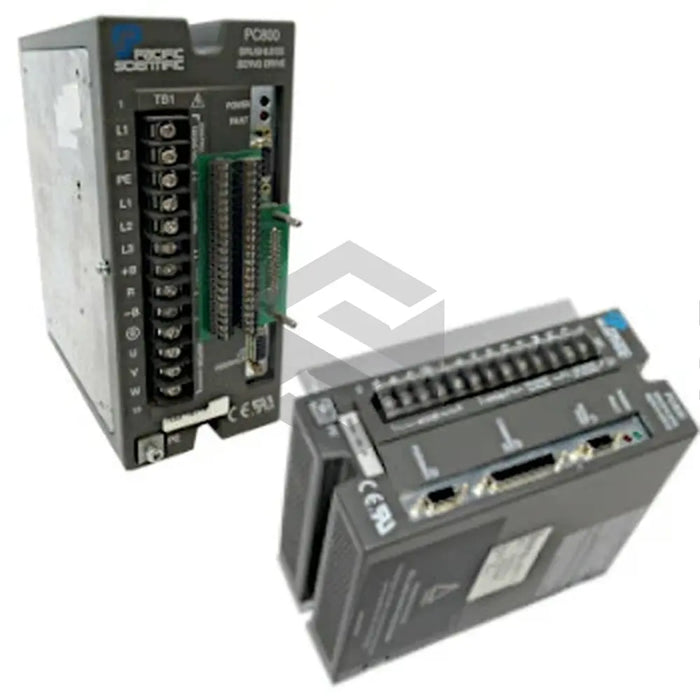

The PM30IB-0100 from Pacific Scientific is a PC800 - PCE800 Brushless Servo Drives unit delivering continuous output power of 7.9 kW. It accepts an 85–265 VAC input voltage range, generating a bus voltage up to 640 VDC. With a maximum mechanical tracking rate of 48,600 RPM, a bandwidth of > 400 Hz and an update period of 62.5 μs, it weighs 22.68 kg and operates in 10–90% humidity with robust overload and overvoltage protection.
Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.
AC Line to Operation Delay (max)
2.0 s
Bus Voltage (380VAC)
507VDC
Bus Voltage (400VAC)
533VDC
Bus Voltage (480VAC)
640VDC
Continuous Output Power
Up to 7.9 kW
Control Input Power
15–25 W
Input Frequency Range
47–440 Hz, single-phase
Input Voltage Range (rms)
85–265 VAC
Max Decode Input Frequency
800 kHz
Max Mechanical Tracking Rate
48,600 RPM
Max Stable Bandwidth
>400 Hz
Operating Humidity
10–90%, non-condensing
Ride-Through Time @ 120VAC, 60Hz
>2.1 s
Ride-Through Time @ 240VAC, 60Hz
>13.3 s
Ride-Through Time @ 90VAC, 50Hz
>0.7 s
Update Period
62.5 µs
Velocity Loop Update Period
250 µs
