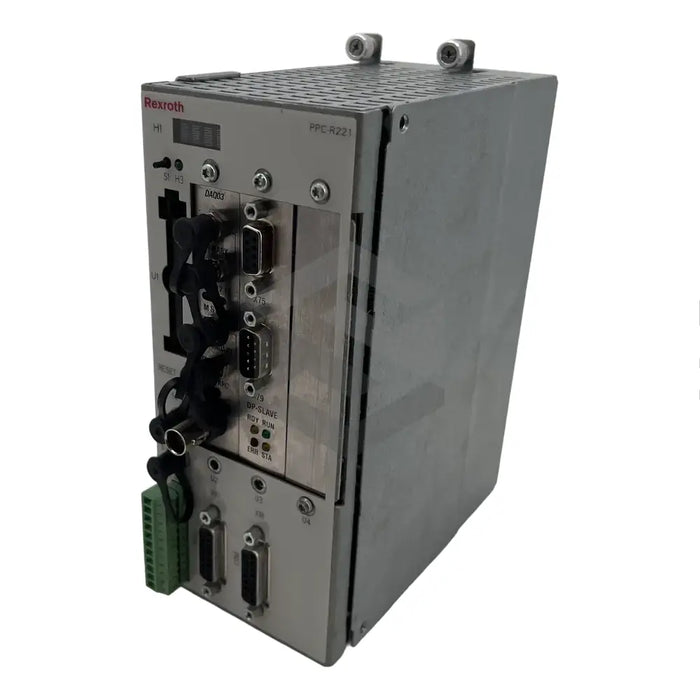

product Main (Front Left) image of PPC-R22.1N-T-Q1-P1-NN-FW

PPC-R22.1N-T-Q1-P1-NN-FW

by Bosch Rexroth Indramat
$7,864.56 - $7,864.56
$7,864.56
$7,864.56 - $7,864.56
$7,864.56
Available, Shipping Varies
The PPC-R22.1N-T-Q1-P1-NN-FW by Bosch Rexroth Indramat is an assuredly safe and reliable control unit designed to function with a variety of digital servo drives from the manufacturer. Made to withstand natural temperature changes, yet not extreme fluctuations, the unit utilizes uniquely designed cables for connectivity. The control unit, boasting VisualMotion system with OPC and DDE servers, can be employed for single or multiple axis drives and control tasks. Essential to note, any improper handling could incur injuries. The device has a nominal voltage rating of 24VDC and a maximum current consumption of 1.2A. Alongside this, the control unit includes a real-time clock to log power shutdowns, uses 15-pin D-sub female connectors for both PROG and COM ports, and adheres to EN 55022 noise emission standards. Last but not least, the unit weighs 1.3kg and should console a 10mm2 ground wire.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Number: PPC-R22.1N-T-Q1-P1-NN-FW
  • Operating Reliability and Safety: Yes
  • Connection Type: Manufacturer Provided Cables
  • Temperature Fluctuation Resistant: No
  • Compatibility: Compatible with various digital servo drives from Bosch Rexroth
  • VisualMotion Control System: Features OPC and DDE servers for communication
  • Multi-Use: Can be used for single and multiple axis drives and control tasks
  • Ground Wire Connection: Required
  • Humidity Range: 5% to 78% (no condensation)
  • Atmospheric Pressure Range: 860hPa and 1,080hPa
  • Nominal Voltage: 24VDC and 4Vpp ripple within allowed range
  • Real-Time Clock: Included
  • Digital Input Time Delay: 50µs
  • Digital Output Delay: Maximum of 500µs
  • Current Consumption: 1.2A maximum
  • Noise Emission: Conforms to EN 55022 standards
  • PROG and COM Ports: 15-pin D-sub female connectors for RS-232 and RS-485 serial interfaces
  • Grounding Requirement: 10mm2 ground wire
  • Weight: 1.3 kg
  • Atmospheric Pressure During Transport: 660 to 1,080hPa
  • Humidity During Transport: 5 to 95% (no condensation)
  • Digital Input Voltage Range: 15V to 30V
  • Digital Output Current Rating: 0.5A.
