R911170845

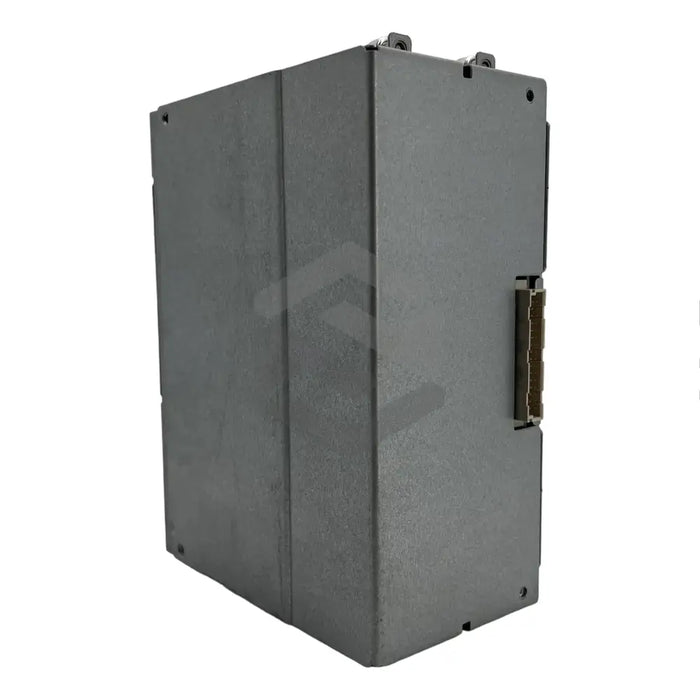

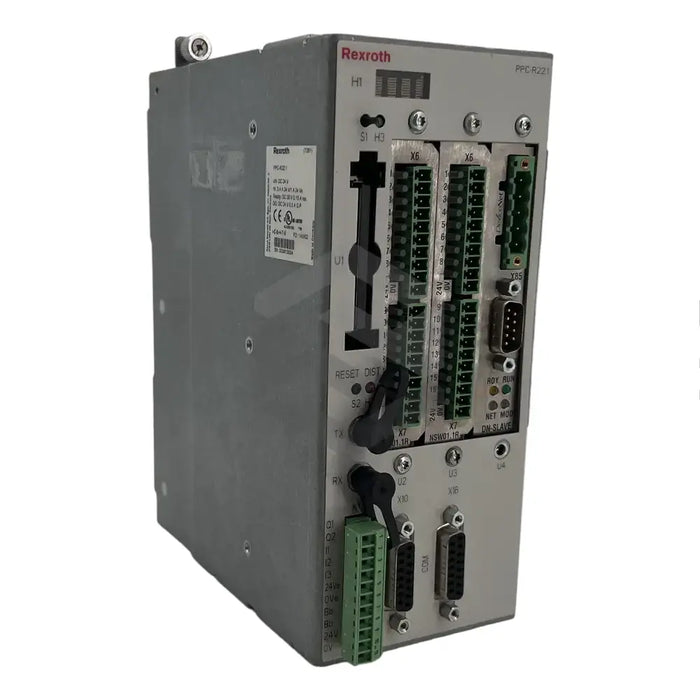

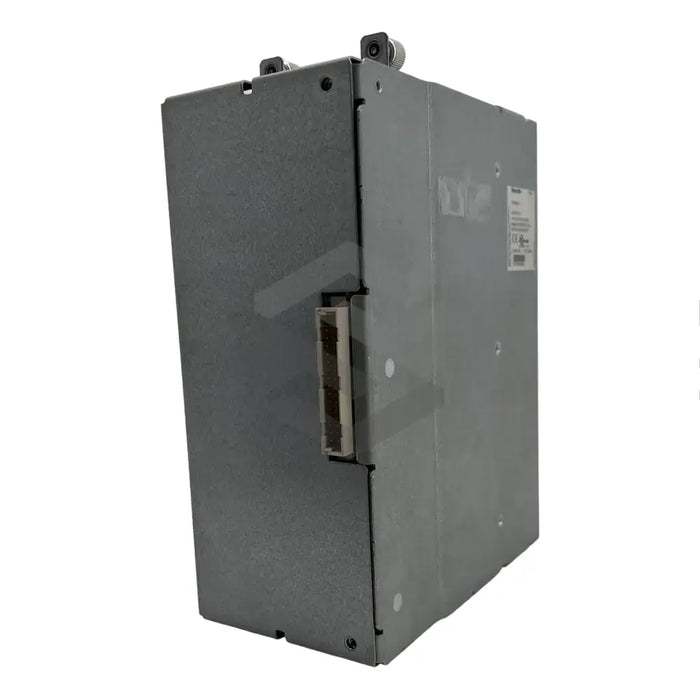

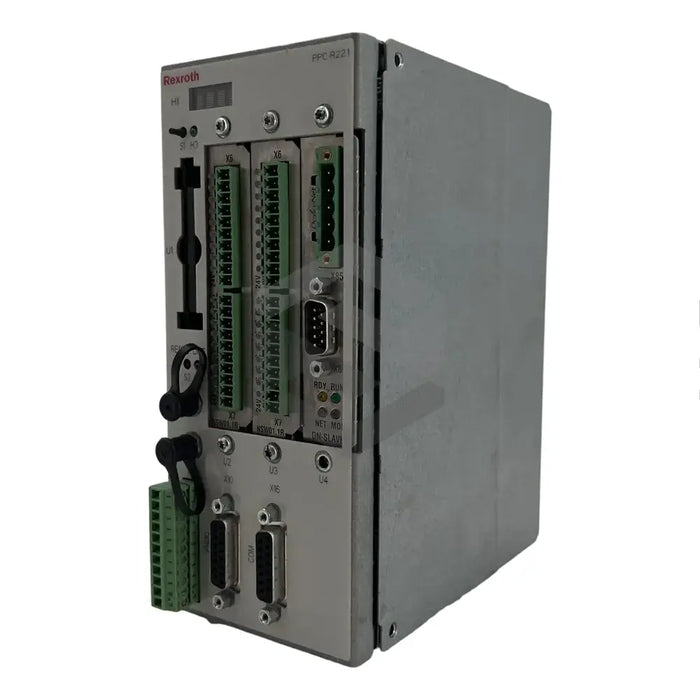

The Bosch Rexroth Indramat R911170845 (PPC-R22.1N-T-N1-N2-V2-FW) is a versatile, high-quality controller housed in an IP 20 rated casing. Depending on firmware requirements, it can function both as an NC controller or a PLC. The controller's physical dimensions are 214mm in height, 83.7mm in width, and 165mm in depth, with a weight of approximately 1.3 kilograms. It is crucial for safety and functionality that the controller be properly grounded using a wire with a minimum cross-sectional area of 6 mm². An important feature to remember is that the controller does not come with a memory module. An integrated Ethernet interface is equipped, and the controller is powered by a 24V DC supply providing 1.2 Amps.
The R911170845 (PPC-R22.1N-T-N1-N2-V2-FW) can withstand up to 5% ripple on the power input. For interfacing, it contains a programming interface of RS 232/422/485 and a general serial interface of the same specifications. It also includes an Indramat BT bus interface. It is programmed using Bosch's PC-based software, the VisualMotion Toolkit. Additional optional modules encompass a DeviceNet slave module, PLS master module, and PLS slave module. Be sure to order firmware matching the controller's intended application. Installation should only be conducted by trained technical personnel to prevent potential injury or equipment damage.
30 Day Warranty
Technical Specifications
