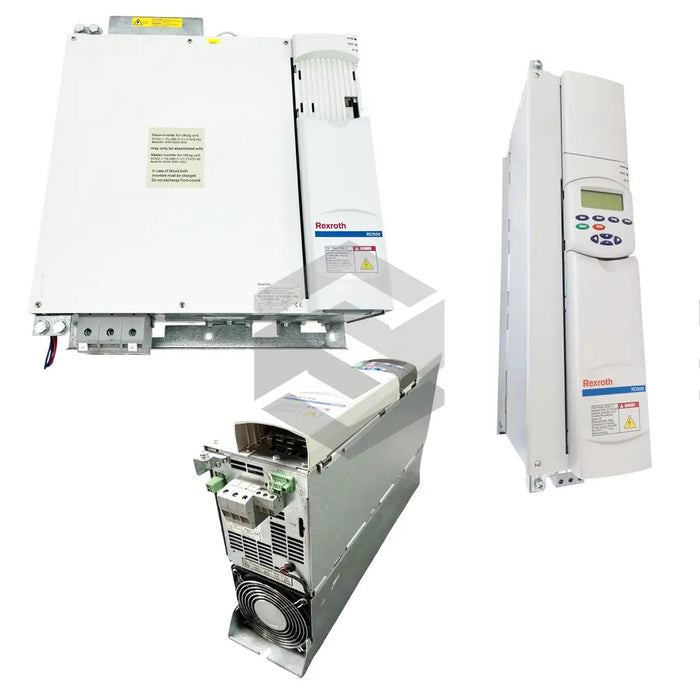

series image of RD52.1-4B-160-F-NN-FW

RD52.1-4B-160-F-NN-FW

by Bosch Rexroth Indramat
$0
$22,800.00 - $22,800.00
$22,800.00
$22,800.00 - $22,800.00
$22,800.00
In Stock, Ships Fast
 More payment options
The RD52.1-4B-160-F-NN-FW is a robust drive converter produced by the industry-leading manufacturer, Bosch Rexroth Indramat. The product stands out with its forced-air conditioning system, improving thermal management within 1510x380x480 mm dimensions and 180 kg weight. It delivers an exceptional output power of 200 HP, with an operational range between 380 - 480 V AC, making it effective for a wide array of industrial applications. Performance is commendable up to 1000 meters above the sea level. With its IP20 rating, it affords protection from tiny particles and dust, enhancing durability. The device should be connected via shielded cables to an incremental encoder, ensuring optimal operations. This model boasts a power output of 160 kW and a peak current of 377 A, with the inclusion of a brake chopper for superior voltage control. Notably, the model comes without firmware and additional functions that need to be purchased separately.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Drive Converter
  • Model: RD52.1-4B-160-F-NN-FW
  • Conditioning System: Forced-Air
  • Height: 1510 mm
  • Depth: 380 mm
  • Width: 480 mm
  • Rated Output Power: 200 HP
  • Weight: 180 kilos
  • Power Supply Module: 380 - 480 V AC (10% tolerance)
  • Max Cruising Height: 1000 meters above sea level
  • Certification: IP20
  • Power Output: 160 kW
  • Peak Current: 377 A for one minute
  • Included Feature: Brake Chopper
  • Required Cable Type: Shielded
  • Rated Current: 290 amps
  • Firmware: Requires separate purchase
  • Additional Functions: None
