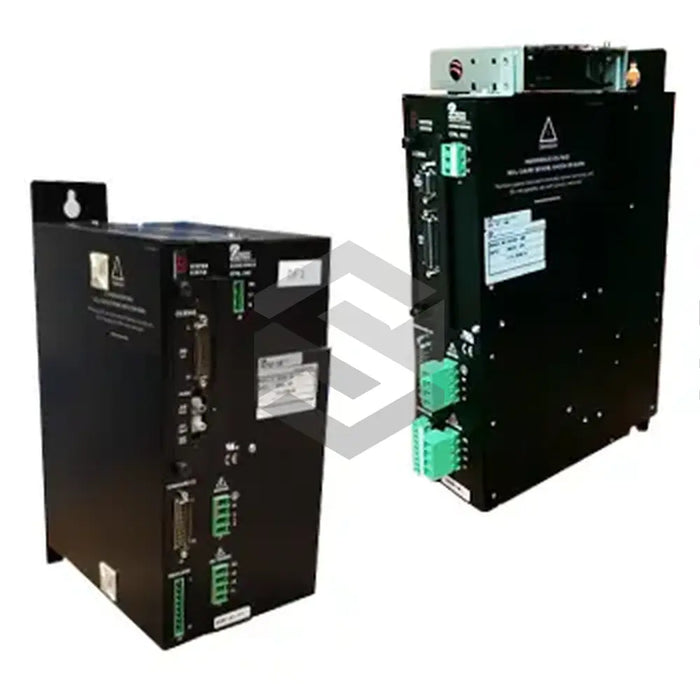

S image of CUE953-005

CUE953-005

by Pacific Scientific
$2,934.65 - $2,934.65
$2,934.65
$2,934.65 - $2,934.65
$2,934.65

In Stock, Ships Fast

The CUE953-005 servo drive from Pacific Scientific's SCE900 Servo Drives series weighs 6.5 kg and features an IP20 enclosure. It runs on 400 VAC (+32%, −55%), supports 50 m of motor cable, and tolerates 10%–90% non-condensing humidity. The drive delivers a 20 kHz output ripple frequency and 16 kW peak output power with forced air cooling. Continuous output power is 125 W with forced air cooling, and control is via resolver-based sinusoidal feedback.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Automation Interface

Programmable positioning control via optional cards

Continuous Output Power For Forced Air Cooling

125 W

Feedback

Resolver-based sinusoidal position & velocity control

Humidity Tolerance

10% to 90%, non-condensing

I/o Options

RS232, RS485, with configuration support via software.

Input Voltage Range

400 VAC (+32%, -55%)

Maximum Motor Winding Inductance

5.7 mH

Motor Cable Length Supported

Maximum 50 meters

Operating Temperature Range

0°C to 50°C

Output Ripple Frequency

20 kHz

Peak Output Power

16 kW at forced air cooling

Protection Class

IP20

Weight

Approximately 6.5 kg
