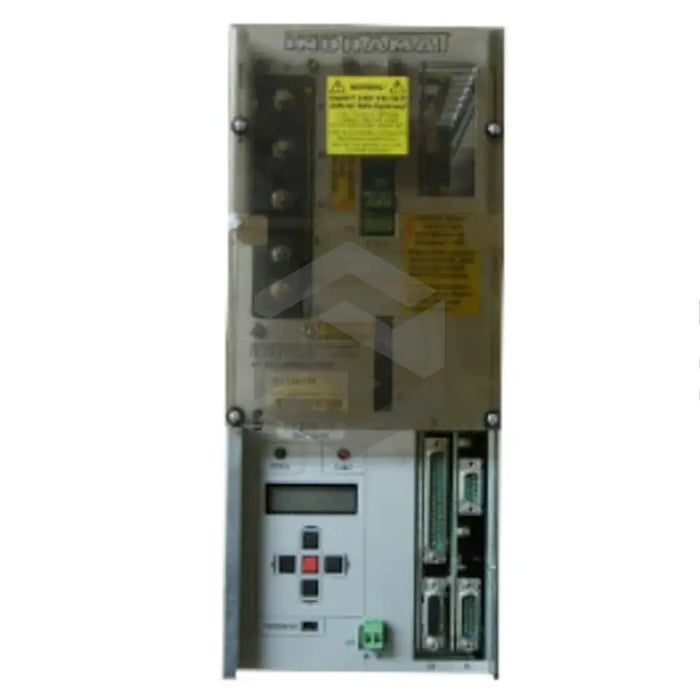

S image of TDA 1.1-100-3-A0I

TDA 1.1-100-3-A0I

by Bosch Rexroth Indramat
$2,975.29 - $2,975.29
$2,975.29
$2,975.29 - $2,975.29
$2,975.29

Available, Shipping Varies

The TDA 1.1-100-3-A0I, a main spindle controller from Bosch Rexroth Indramat, requires a minimum 80mm clearance from the top of the cabinet it is housed in. Heat dissipation occurs through the product's housing vents and depends on the device's load. Featuring three types of electrical connections, it is designed to work with Bosch's 2AD and 1MB series motors. Its modular design allows high precision control at low speeds and is usually employed in numerically controlled machine centers. The controller offers high stiffness and a broad speed range at constant power. It incorporates an incremental encoder output for thread cutting or position control by an NC controller operating in C-axis mode. Connection with an NC controller is made via a +/-10V analogue speed command value. The unit requires earthing via a conductor of a minimum 10mm2 cross-section.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Model

TDA 1.1-100-3-A0I

Product Type

Main Spindle Controller

Minimum Clearance

80mm

Cooling Method

Vents in Housing

Electrical Connections

Three Types

Version Code

2

Earthing Cable Conduct Cross-Section Requirement

10mm2

Cooling Method

Airflow in Control Cabinet

Modular Design

Yes

Compatible Motors

2AD and 1MB Series

Typical Usage

Numerically Controlled Machine Centers

Features

High Stiffness, Wide Speed Range with Constant Power

Low Speed

High Precision Control

DC Link Circuit Rated Voltage

300V

Encoder Output

Incremental, But No Additional Encoder Input

Terminal Block

Present for Motor and DC Link Circuit

Speed Command Value

+/-10V Analog.
