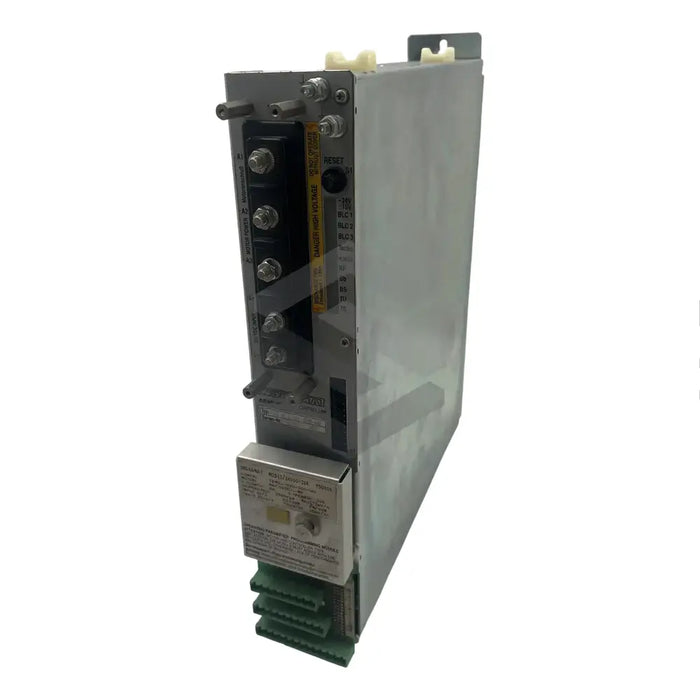

product Main (Front Left) image of TDM 4.1-030-300-W1

TDM 4.1-030-300-W1

by Bosch Rexroth Indramat
$0
$1,071.96 - $1,071.96
$1,071.96
$1,071.96 - $1,071.96
$1,071.96
Available, Shipping Varies
 More payment options
The TDM 4.1-030-300-W1, by Bosch Rexroth Indramat, is a versatile servo drive module designed for high-precision applications in a range of industry-grade machines, notably NC machines and automotive production machines. It specifically supports MAC 21, MAC 25, and MAC 41 motors, utilizing a highly controlled 3-phase system to regulate aspects like torque, speed, and motor function. The product operates on a current rating of 30A and a DC link circuit voltage of 300V. Extra functionality includes smoothing the NC output through a differential input E1 – E2, and servitude in torque-controlled and tandem drive setups. Built-in fans provide forced convection cooling, while a programming module enables fine-tuning to the specific motor type. The product is designed for easy maintenance, requiring minimal adjustments, allowing quick component replacement by users without specialized training.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Servo Drive Module
  • Model: TDM 4.1-030-300-W1
  • Usage: For MAC 21, MAC 25, and MAC 41 motors
  • Applications: NC machines for wood works, automation systems, production machines in automotive plants
  • Current Rating: 30 A
  • DC Link Circuit Voltage: 300 V
  • System Phase: 3-phase
  • Torque Control: Determines by the current amplitude of the system
  • Speed Control: Set by the frequency of the 3-phase system
  • Cooling Method: Forced convection via built-in fans
  • Programming Module: Provided with the product
  • Servicing: Can be serviced without any optimizations and adjustments
  • Additional Features: Can be used as a torque-controlled drive, Suitable for tandem drive setup
  • Employee Training: Not required for product replacement
