TDM02.1-030-300-W1/100

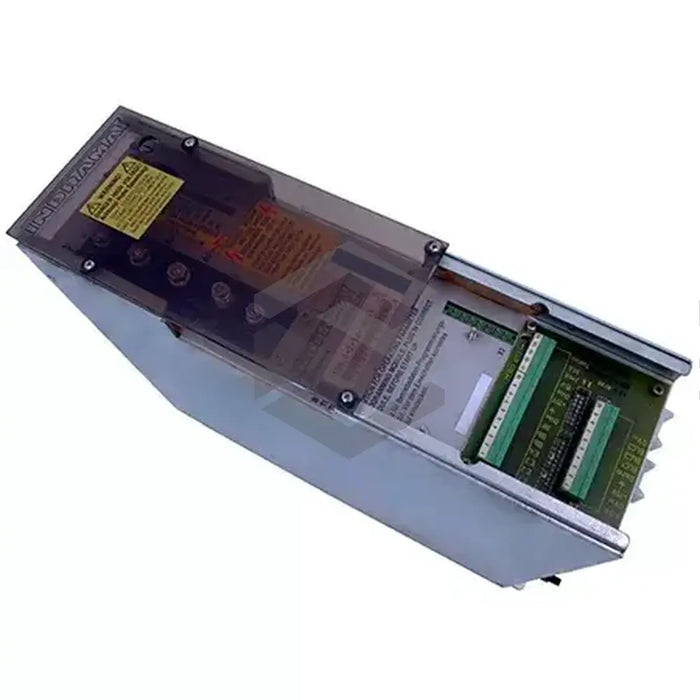

Introducing the TDM02.1-030-300-W1/100 servo drive module from Bosch Rexroth Indramat, part of the TDM Servo Drive Modules series. This robust unit is engineered to deliver precise variable-speed control for three-phase MAC motors in NC position control loops. The module supports a continuous current rating of 30A and delivers a peak current of 30A, ensuring versatile performance under demanding load conditions. With an input energy handling capacity of 9 kW and a compact footprint weighing just 10 Kg, the TDM02.1-030-300-W1/100 balances high power density with ease of integration. Equipped with an aerodynamic forced ventilation cooling system, this drive module maintains optimal operating temperatures in industrial environments.

From a technical standpoint, the TDM02.1-030-300-W1/100 incorporates a link circuit DC current threshold of 300 V, enabling stable DC bus operation and rapid dynamic response. Electrical insulation is rated class C according to DIN VDE 0110, and the module meets Humidity classification F in accordance with DIN 40 040, ensuring resilience in varied humidity conditions. The unit’s Power loss with continuous current is limited to 190 W, supporting efficient energy utilization and minimal heat generation. An integrated power stage handles up to 9 kW of drive power with exceptional linearity, while the robust internal design upholds an IP10 protection class rating for basic ingress protection in controlled environments.

Operational features of the TDM02.1-030-300-W1/100 deliver tangible benefits in factory automation. The module’s forced air cooling via a built-in fan ensures consistent thermal management and prevents overheating during continuous operation. Protective circuitry monitors current and voltage in real time, safeguarding the drive against overcurrent events at its 30 A peak capacity. A clear LED display and status lamps facilitate rapid diagnostics and troubleshooting, reducing downtime and maintenance effort. The drive’s ergonomic rack-mount chassis—with a total mass of 10 Kg—supports straightforward installation and service access in compact control cabinets.

Integration of the TDM02.1-030-300-W1/100 is seamless: its standard rack interface and IP10 protection class housing enable straightforward connection to existing control systems. The module excels in applications such as CNC machining centers, robotic positioning axes, packaging lines, and conveyor drives where precise position control and dynamic acceleration profiles are required. Compliance with DIN standards for insulation, humidity, and electrical safety simplifies certification in global installations. With its combination of high power density, robust protection ratings, and efficient thermal management, the TDM02.1-030-300-W1/100 sets a new benchmark for servo drive performance in industrial automation.
