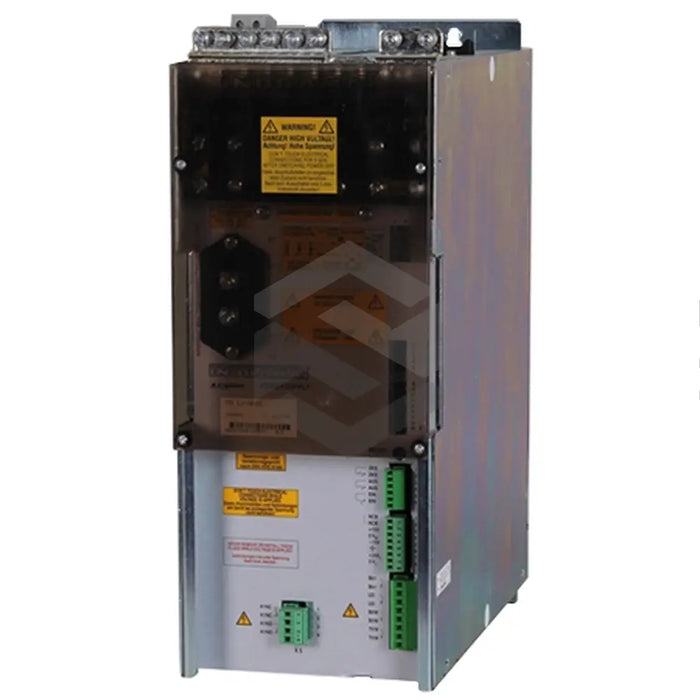

TVD 1.2-08

Original price $2,715.46 - Original price $2,715.46
Original price
$2,715.46
$2,715.46 - $2,715.46
Current price $2,715.46
Available, Shipping Varies
The Bosch Rexroth Indramat TVD 1.2-08 is a power supply module that complies with the UL-Standard. It has a DC bus power of 7.5 kW and 15 kW and connects to the drive controller bus bar through a single twisted cable, not exceeding 1 meter in length. For the drive's cooling unit, no additional power connection is needed. However, any separate connections for the spindle drive cooling unit should be located close to the power supply module. The operating supply voltage is 3 x AC 380-480V, 50 to 60Hz, connected to a 300 VA load for optimal power provision to the drive's electronic components. The TVD 1.2-08 includes a termination plug and a 16-pin wire ribbon cable for terminal connections, serving as both a power source and signal exchange medium. Additionally, its 16-pin bus terminal can connect 20 spindle drive controllers. The connection load should not surpass +24 V and ± 15 V.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Model: TVD 1.2-08
  • Standard: UL-Standard
  • DC bus continuous power: 7.5 kW and 15 kW
  • Drive controller connection: Single twisted cable
  • Cable conductor length: Not exceeding 1 meter
  • Power supply module feature: No additional power connection for blower
  • Blower connectors: Purchased separately with order number 219 118
  • Power supply unit voltage: 3 x AC 380-480V, 50 to 60Hz
  • Power supply unit load: 300VA
  • Supplied accessories: Termination plug and 16 pin wire ribbon cable
  • Terminal connection: Voltage source and signal exchange
  • Module installation: Center of the drive package
  • Bus terminal: 16 pin
  • Controller connectivity: 20 spindle drive controllers, 10 left and 10 right
  • Maximum connection load: +24 V and ± 15 V.
