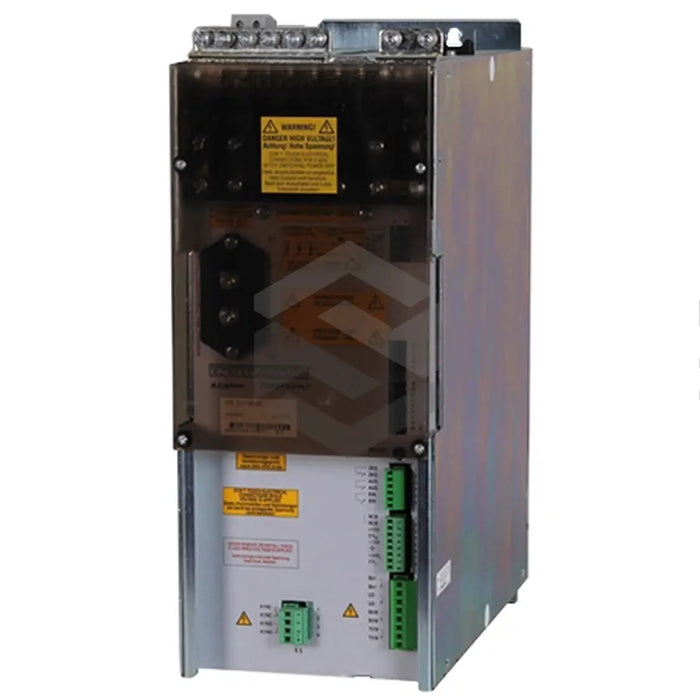

S image of TVD 1.3-08

TVD 1.3-08

by Bosch Rexroth Indramat
$4,669.63 - $4,669.63
$4,669.63
$4,669.63 - $4,669.63
$4,669.63

In Stock, Ships 1 - 3 Days

The Bosch Rexroth Indramat TVD 1.3-08 power supply unit features a DIN 40 050 IP10 protection category and employs an external bleeder, installed outside of the control cabinet, to minimize heat emission during use. This makes the TVD’s internal bleeder resistor redundant. The unit is interconnected to other modules for spindle drive braking position-control. It has a ZKS terminal input (X2/1 - X2/2) operational at a voltage of 24 V DC and current of 270mA, which also doubles as a safety feature. The power contactor is removable if the ZKS input is closed. It also has Input OFF (X2/3 - X2/4) and Input ON (X2/5 - X2/6) terminals, operable at 24VDC and 270mA current. The power contactor can only be activated if the OFF input is closed. Maintain adherence to the specified distances from flammable materials to avoid overheating.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Model

TVD 1.3-08

Protection Category

IP10

Use of External Bleeder

Yes

External Bleeder Installation Place

Rare Panel Outside Control Cabinet

Internal Bleeder Resistor Usage

No

Required Distance from Flammable Materials

300 mm above, 40 mm on every side

Interconnection Possibility

Yes

Usage

Position-Control Braking of Spindle Drive

Terminal Input

X2/1 - X2/2 (ZKS)

ZKS Terminal Operating Current

270mA

ZKS Terminal Operating Voltage

24 V DC

ZKS Terminal Function

Disconnect Power Supply When Closed, Prevent Short Circuit, Safety Feature

Switching Rate of Terminal

25 operating cycles per minute

Additional Terminals

X2/3 - X2/4 (Input OFF), X2/5 - X2/6 (Input ON)

Terminal Voltage

24V DC for both inputs

Terminal Current Consumption

270mA for both inputs

Power Contactor Function

Pull in When OFF Input is Closed.
