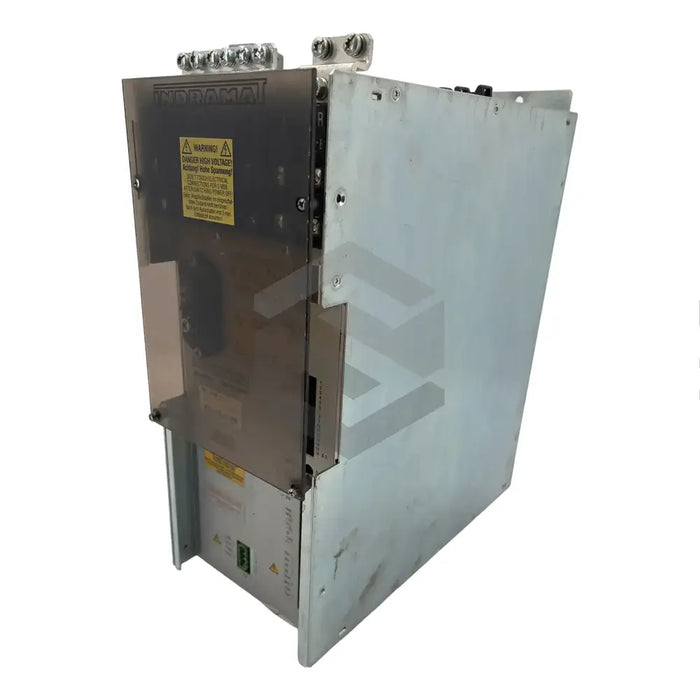

product Main (Front Left) image of TVD 1.3-08-03

TVD 1.3-08-03

by Bosch Rexroth Indramat
$6,600.00 - $6,600.00
$6,600.00
$6,600.00 - $6,600.00
$6,600.00
In Stock, Ships Today
The Bosch Rexroth Indramat TVD 1.3-08-03 is a highly optimized and efficient power supply module, designed and built to perform in the demanding sector of motion control. With an operational frequency of 50-60Hz, this module offers a DC bus voltage of 320 +/- 5% V and an input voltage range of 3 x 380 to 480 +/- 10% V. It provides a maximum DC power of 22.5 Kw for 0.3 seconds, and a continuous DC power of 7.5Kw. The integrated bleeder delivers a continuous power of 0.5 kW and a peak power of 20 kW. The maximum regenerated energy is 20 kWs and the base power loss is 75 W. Weighing only 10.5 kgs, this module supports an ambient temperature of +5 to +45 °C at rated data and up to +55 °C with derating. The storage and transport temperature range spans from -30 to +85 °C, and it can be mounted at up to 1000 MSL.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Motion Control Products
  • Model: TVD 1.3-08-03
  • Frequency: 50Hz to 60Hz
  • DC Bus Voltage: 320 +/-5% V
  • Input Voltage: 3 x 380 to 480 +/- 10% V
  • Max DC Power at 0.3 seconds: 22.5 Kw
  • Continuous DC Power: 7.5Kw
  • Bleeder Continuous Power: 0.5 kW
  • Bleeder Peak Power: 20 kW
  • Max Regenerated Energy: 20 kWs
  • Basic Loss: 75 W
  • Power Loss per Continuous DC Power: 14 W
  • Net Weight: 10.5kgs
  • Max Ambient Temp with Derated Data: 550C
  • Ambient Temp with Rated Data: +5 to +450C
  • Storage Temperature: -30 to +850C
  • Maximum Mounting Height: 1000 MSL
