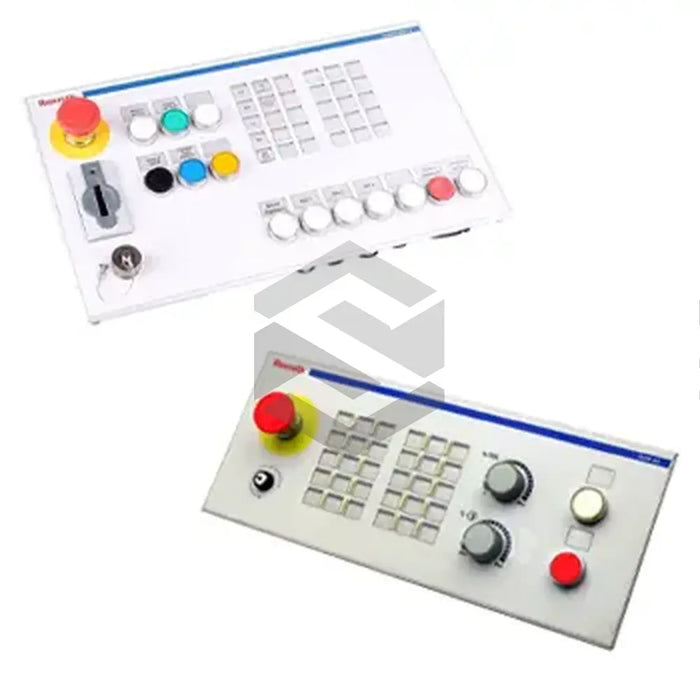

The R911171656 (VAM42.1-PB-NF-AB-TB-NN-EK-1608-D1), a machine control panel, is a part of the esteemed VAM series from Bosch Rexroth Indramat. Boasting a line code of 42 and a design code of 1, it is outfitted with six elongated keys and a shock resistance of 15 G. This unit aids in the selection of operating modes in conjunction with operator and visualization terminals. It also has a vibration resistance of 1 G and pairs well with Bosch Rexroth's VPP 40 and VSP 40 products, matching their width.
Primarily used in lathes, milling machines and machining centers, the control panel houses a 3A SMD fuse alongside an insulated voltage supply with a built-in reverse voltage safeguard. It integrates a Euchner electronic system that consumes 100mA of current, and a Type B USB interface with a female connector. According to the standards of EN 60721-3-3 and climatic class 3K3, the device operates best at a non-condensing humidity level of minimum 5%. Installation should be carried out ensuring an easily reachable front panel with clear LED visibility. The panel encompasses six pushbuttons and encompasses specific protective earth wiring connections, compliant with EN 60204 Part 1 regulations. The nuts have a torque limit of 1.4Nm and the 'Emergency Stop' button can be wired thanks to two N/C contacts in the switching elements.
30 Day Warranty
Technical Specifications
