R911172211
Original price
$4,162.50
-
Original price
$4,162.50
Original price
$4,162.50
$4,162.50
-
$4,162.50
Current price
$4,162.50

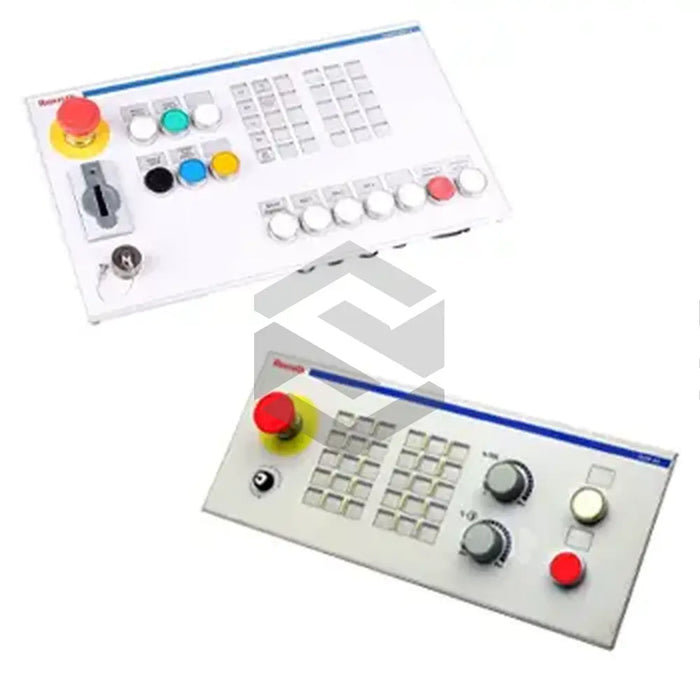

Bosch Rexroth Indramat's R911172211 (VAM40.3-S3-NF-TA-TA-VD-MA-1616-NN) is an operator terminal specifically designed to facilitate usage with 15-inch devices, specifically compatible with VDP40, VEP50, and VPP40 series devices. This technical apparatus is sizable at 407 inches in width and comes equipped with enhanced operational features such as spindle override and feed override rotary controls, along with short-stroke, emergency OFF, and ON/OFF keys. The terminal is designed to always ensure safety and optimal operations provided it is correctly installed, operated, stored, and transported. Please note that the terminal must be used in compliance with national EMC regulations.
The operator terminal incorporates 16 inputs along with 16 outputs and operates following the SERCOS III standard interface for PROFIBUS. It operates optimally between 19VDC and 32VDC of supply voltage, with a typical 24VDC logic voltage and a peak supply current of 1.7A. The appliance performs best at ambient temperatures ranging from 5°C-45°C, and should be adequately distanced from interference sources. Lastly, in order to ensure ergonomic operation, avoid installing the terminal in direct sunlight or places prone to heat development. It has been structurally built to withstand 1g vibration and 15g shock resistance. The device should be safely installed using the mounting bolts and the connecting cables should be laid in loops for further security.
30 Day Warranty
Technical Specifications
