VAM12.1-PB-NF-AB-TB-NN-EK-1608-D1

Original price $2,466.71 - Original price $2,466.71
Original price
$2,466.71
$2,466.71 - $2,466.71
Current price $2,466.71
Available, Shipping Varies

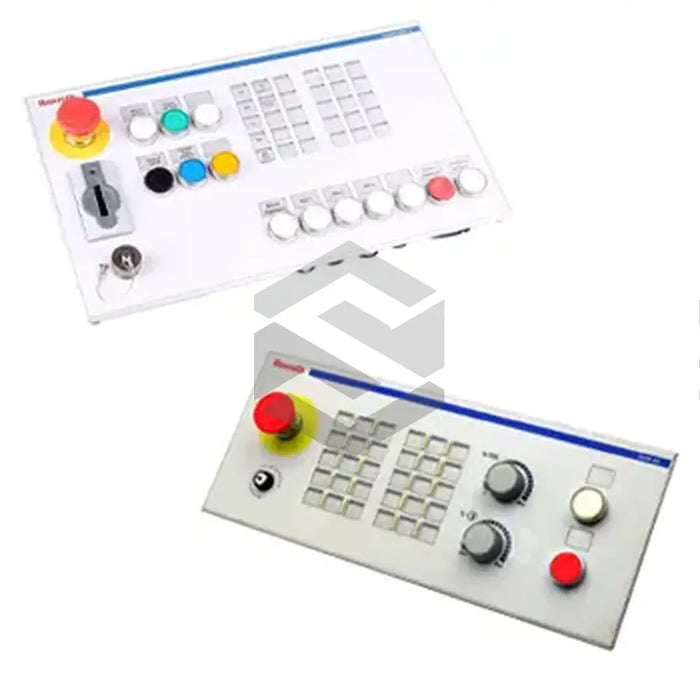

The Bosch Rexroth Indramat VAM12.1-PB-NF-AB-TB-NN-EK-1608-D1 Machine Control Panel supports standard tool machines with single and multiple axis control tasks. Equipped with 30 short-stroke keys with green LED, a custom layout featuring four pushbuttons, and a width matching the VSP 16 product series, this control panel is versatile in function. Sporting an IP 54 protection rating for its front panel, it maintains a 24VDC logic supply voltage and a maximum logic current supply rating of 0.5A. Further, the Emergency Stop button complies with EN ISO 13850 standards. Notably, it features an integrated Euchner EKS Electronic Key adapter or card reader with a USB interface, which includes LA1/LA2 and LB1/LB2 screw terminal outputs. This unit, devoid of a rear covering plate, is front-mounted using M4 bolts and screws and must only be used in suitable ambient conditions.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Machine Control Panel
  • Number of Keys: 30 short-stroke keys
  • Illumination: Green LED
  • Customizable Pushbuttons: 4
  • Size Compatibility: VSP 16 series
  • Supply Voltage Rating: 24VDC
  • Application: Single and Multiple Axes Control and Drive Tasks
  • Construction: Must strain relief cables and place connecting cables in loops
  • Installation: Insert into cut-out from the front and fasten using M4 mounting bolts
  • Protection: IP 54 for front panel
  • Emergency Stop Button: Meets EN ISO 13850 requirements
  • Keypads: Two with 15 keys each
  • Display Cutouts: Pre-milled for 22.5mm elements
  • Adapter: Euchner EKS Electronic-Key with USB interface
  • USB Interface Outputs: LA1/LA2 and LB1/LB2 screw terminal
  • Maximum Logic Current Supply: 0.5A
  • Environmental Compliance: Must not influenced by chemical, mechanical or electrochemical.
