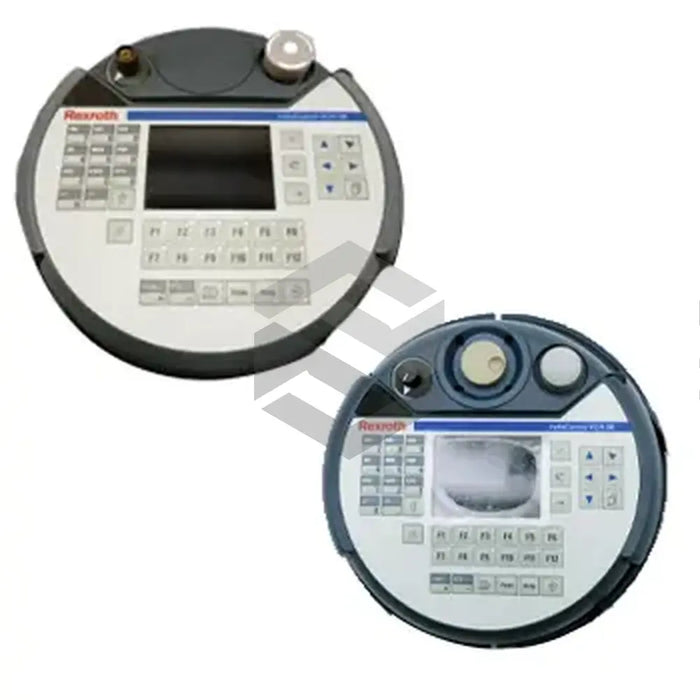

manufacturer image of VCH08.1-EAB-064ET-A10-064-D4-E1-PW

VCH08.1-EAB-064ET-A10-064-D4-E1-PW

by Bosch Rexroth Indramat
Request a quote
The VCH08.1-EAB-064ET-A10-064-D4-E1-PW, a product of Bosch Rexroth Indramat, is a versatile IndraControl from the VCH 08.1 series. This durable control device is suited for various applications including the installation of systems, visualization of operating fields, and IndraMotion MTX, MLC, and IndraLogic operation. It's built for compatibility with Windows CE devices, thanks to its FLASH and RAM databases which forgo the need for unsuitable mass storage devices in difficult operation conditions. Furthermore, it can be customized with optional controls. This device is designed for resilience with a shock-proof casing that can withstand impacts, vibration, water, cleaning agents, and various oils. It hosts an Intel PXA 270/416 MHz processor, up to 64 MB of RAM and flash memory each, an EtherNet connection, and a USB-Client. With 40 keys, 12 status LEDs, IP 65 protection, and a power supply of 24 VDC, this IndraControl is dependably powerful for an extensive range of industrial applications.
30 Day Warranty
Technical Specifications
  • Product Manufacturer: Bosch Rexroth Indramat
  • Product Model: VCH08.1-EAB-064ET-A10-064-D4-E1-PW
  • Series: VCH 08.1
  • Operating System Compatibility: Windows CE
  • Database Type: FLASH and RAM
  • Optional Elements: Operation and control
  • Key Applications: Machine and system installation, simple operating field visualization, operation and visualization of IndraMotion MTX, IndraMotion MLC, and IndraLogic
  • Casing Type: Shock-proof
  • Casing Resistance: Water, cleaning agents, oils, grease, lubricants
  • Keypad Material: Chemical-resistant polyester film
  • Keypad Count: 40 keys
  • Display Type: Display with 12 status LEDs
  • Processor Type: Intel PXA 270/416 MHz
  • RAM Memory: Up to 64 MB
  • Flash Memory: 64 MB
  • Available Interfaces: One EtherNet connection, USB -Client in cable duct
  • Protection Class: IP 65
  • Power Supply: 24 VDC
  • Input Voltage Range: 24 VDC (19.2 … 30 VDC)
  • Maximum Inrush Current: 5.6A
  • Operating Temperature: 0 to 50 degrees
  • Storage Temperature: -20 to 70 degrees
  • Maximum Installation Elevation: 2000 meters above sea level.
