Shop Indramat KDV Collection
-
Original price $9,716.40 - Original price $9,716.40Original price$9,716.40$9,716.40 - $9,716.40Current price $9,716.40KDV 3.1-100-220-300-W1-220
Bosch Rexroth IndramatIn Stock, Ships FastThe KDV 3.1-100-220-300-W1-220 is a power supply module manufactured by Bosch Rexroth Indramat in the KDV Supply Modules series. It operates on 220...
View full detailsOriginal price $9,716.40 - Original price $9,716.40Original price$9,716.40$9,716.40 - $9,716.40Current price $9,716.40 -
Original price $7,666.69 - Original price $7,666.69Original price$7,666.69$7,666.69 - $7,666.69Current price $7,666.69KDV 1.3-100-220/300-W1/S100
Bosch Rexroth IndramatAvailable, Shipping VariesThe Bosch Rexroth Indramat KDV 1.3-100-220/300-W1/S100 power supply, part of the KDV Supply Modules series, delivers robust drive power for advance...
View full detailsOriginal price $7,666.69 - Original price $7,666.69Original price$7,666.69$7,666.69 - $7,666.69Current price $7,666.69 -

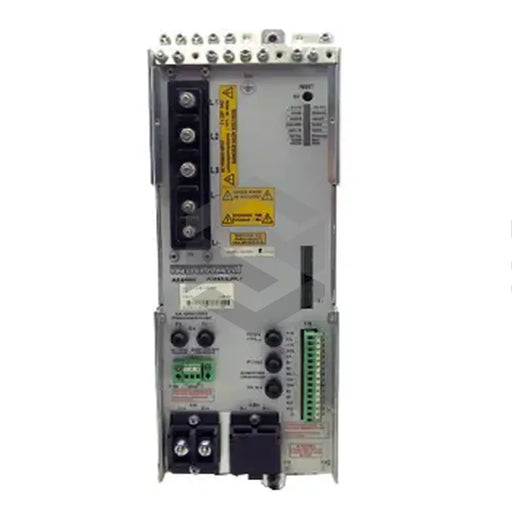

Original price $4,811.27 - Original price $4,811.27Original price$4,811.27$4,811.27 - $4,811.27Current price $4,811.27KDV2.2-100-220/300-W1
Bosch Rexroth IndramatAvailable, Shipping VariesThe Bosch Rexroth Indramat KDV2.2-100-220/300-W1 from the KDV Supply Modules series exemplifies advanced engineering in power conversion designed f...
View full detailsOriginal price $4,811.27 - Original price $4,811.27Original price$4,811.27$4,811.27 - $4,811.27Current price $4,811.27 -
Original price $0.00 - Original price $0.00Original priceRequest a Quote$0.00 - $0.00Current price Request a QuoteKDV1.3-100-220-300-W1-115
Bosch Rexroth IndramatManufactured by Bosch Rexroth Indramat, the KDV1.3-100-220-300-W1-115 power supply is part of the KDV Supply Modules and is geared for industrial A...
View full detailsOriginal price $0.00 - Original price $0.00Original priceRequest a Quote$0.00 - $0.00Current price Request a Quote -
Original price $0.00 - Original price $0.00Original priceRequest a Quote$0.00 - $0.00Current price Request a QuoteKDV1.3-100-115V
Bosch Rexroth IndramatKDV1.3-100-115V is a compact power supply with a 100 A rating and a modular design. Bosch Rexroth Indramat produces this KDV Supply Modules unit fe...
View full detailsOriginal price $0.00 - Original price $0.00Original priceRequest a Quote$0.00 - $0.00Current price Request a Quote
Indramat KDV
The Indramat KDV series is a range of power supply modules designed and manufactured by Bosch Rexroth Indramat, which are integral to AC servo drives systems. These power supplies are known for their efficiency and reliability in providing DC power for Indramat drives that are in turn used with Indramat controls and servo motors. The KDV series includes several models with various specifications to meet the needs of different applications.
One of the notable features of KDV drives is their ability to manage heat efficiently. They are described as "cold running" units because their heatsink designs allow the majority of the heat loss to occur outside the cabinet, which can significantly save on cooling costs. They also come equipped with a full array of displays and warning sensors, including integrated bleeder overload warning sensors, earth connection LED indicators, an AUX volt display, and power ON/OFF LED indicators. Moreover, the maintenance aspects are considered user-friendly since heatsink blower connectors and blower/control voltage fuses are easily accessible.
For instance, a specific model from the series, the KDV 1.3-100-220-300-W1, can supply up to 100A of rated current and operate with a nominal voltage of AC 220V and a DC bus nominal voltage of DC 300V. The units in this series are also capable of supporting consistent use with up to 24kW of energy, making them suitable for high-power applications.
The KDV series units are designed to convert incoming AC voltage to DC bus power, directing it to the connected servo drives. They are known for their ruggedness and long-lasting performance, which are key attributes for components in motion control systems.
KDV Type Code
Below is a breakdown of how to read the type code of "KDV parts, using KDV 1.3-100-220/300-W1/115/220" as an example.
- Model name: KDV
- Series: 1
- Version: 3
- Continuous Current: 100 amps
- 3-phase input voltage: 220 VAC
- DC output bus voltage: 300 VDC
- W = Panel mount
- 0 = Convection cooled (not for use with AC Spindle)
- 1 = Blower cooled
- Fan/Control voltage available options:
- 115/220 = 115 VAC fan voltage or 220 VAC control voltage
- 220/380 = 220 VAC fan voltage or 380 VAC control voltage
KDV02 Technical Data
| Input - power section | Symbol | Value |
|---|---|---|
| Nominal input voltage | U_ACN | 3 x 230V (+10%; -15%) or 3 x 220V (+15%; -10%) |
| Frequency | f_N | 50...60 Hz |
| Output - power section | Symbol | Value |
| DC bus voltage | U_DC | 300 (+ 15%; -10%) |
| Continuous DC bus voltage | P_cont | 30 (with add. capacitance 4 mF) |
| Peak DC bus power | P_peak | 90 kW |
| Continuous bleeder power | P_BD | 2 kW |
| Peak bleeder power | P_BM | 40 kW |
| Max. regenerative energy | W | 100 kWs |
KDV04 Technical Data
| Power section input | Symbol | Unit | Value |
|---|---|---|---|
| Nominal input voltage | U(ACN) | V | 3 x 380 ... 460 (± 10%) 50 ... 60 Hz |
| Power section output | |||
| Link circuit dc voltage | U(DC) | V | 320 (± 10%) |
| Link circuit continuous power | P(cont) | kW | 30 (with add. capacitor 4 mF) |
| Link circuit peak power | P(peak) | kW | 48 |
| Continuous feedback power | P(RD) | kW | 20 (with add. capacitor 2 mF) |
| Peak feedback power | P(RS) | kW | 40 |
| Continuous bleeder power | P(BD) | W | 0 |
| Peak bleeder power | P(BM) | kW | 40 |
| Maximum feedback energy with power off | W | kWs | 100 |
Ambient Data
Using your KDV module within the specified ambient conditions will ensure proper drive performance. Please refer to the appropriate Indramat manual for more in-depth specifications.
KDV02 Ambient Data
| Specification | Unit | Value |
|---|---|---|
| Installation elevation without reduction of nominal data | m | 1000 meters above sea level |
| Permissible relative humidity | % | maximum 95 |
| Permissible absolute humidity | g/m³ | 25 g water / m³ air |
| Degree of contamination |
- non-conductive contamination - no condensation |
|
| Protection classification: drive | IP 10 per DIN VDE 470, section 1 | |
| Protection classification: heatsink | IP 54 | |
KDV04 Ambient Data
| Specification | Unit | Value |
|---|---|---|
| Installation elevation without reduction of nominal data | m | 1000 meters above sea level |
| Permissible relative humidity | % | maximum 95 |
| Permissible absolute humidity | g/m³ | 25 g water / m³ air |
| Degree of contamination |
- non-conductive contamination - no condensation |
|
| Protection classification: drive | IP 10 per DIN VDE 470, section 1 | |
| Protection classification: heatsink | IP 54 | |
