0 608 760 108

Original price $2,187.75 - Original price $2,187.75
Original price
$2,187.75 - $2,187.75
Current price $2,187.75
Available, Shipping Varies

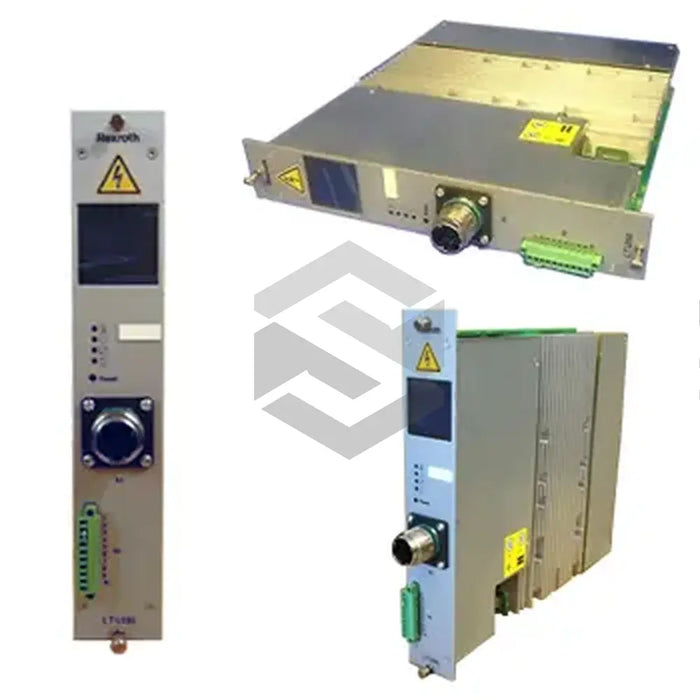

The product in focus, the 0 608 760 108 is a top-tier servo amplifier from Bosch Rexroth Indramat, intended for use with ErgoSpin handheld nut runners. Weighing 2.85 kg, the servo amplifier adjusts the speed of the nut runners by modifying the supplied current, with power derived from a supply module. It features an XDS1 interface for integration with the tightening spindle. Its compact design (dimensions: 46 mm width, 271 mm height, and 285 mm depth) ensures easy installation and an IP 20 protection standard secures against accidental contact and damage by objects larger than 12.5 mm. Featuring a backlit graphic LC display, the amplifier provides real-time operational data, including torque, time, angle, and gradient. It functions on an intermediate circuit voltage of 160 V to 320 V and incorporates two rear fuses for safety. Compatible with the rated motor current, its output frequency ranges between 0 Hz to 1000 Hz. An integrated interference suppression filter enhances its operation.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Servo Amplifier
  • Model Number: LTU 350 0 608 760 108
  • Weight: 2.85 kg
  • Function: Controls speed of ErgoSpin handheld nut runners
  • Power Supply: Via supply module
  • Interface: XDS1 interface for tightening spindle
  • Dimensions: 46mm x 271mm x 285mm
  • Protection Standard: IP 20
  • Display: Inbuilt graphic LC with permanent LCD backlight
  • Voltage: 160V to 320V (intermediate circuit)
  • Fuses Protection: Two fuses connected on rear side
  • Output Frequency: 0Hz to 1000Hz
  • Additional Features: Built-in interference suppression filter
