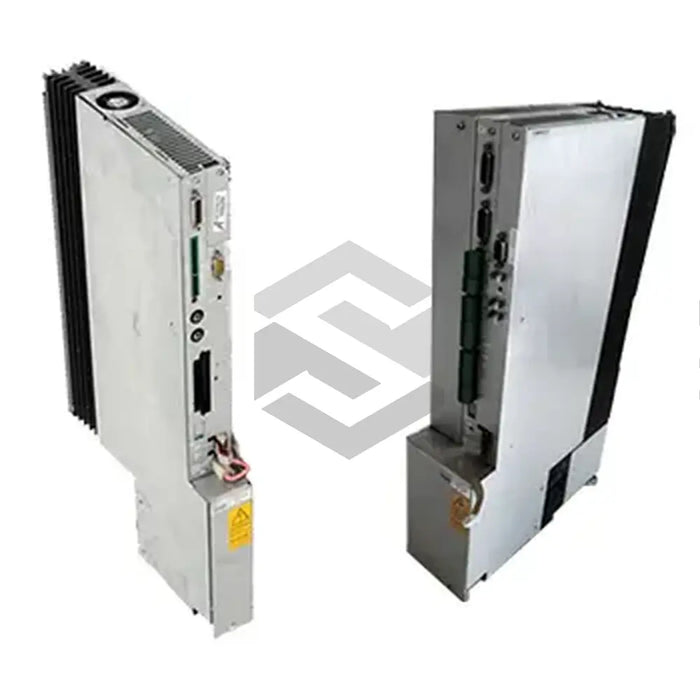

075668-402-7

Original price $1,861.18 - Original price $1,861.18
Original price
$1,861.18
$1,861.18 - $1,861.18
Current price $1,861.18

In Stock, Ships Fast

The 075668-402-7 from Bosch Rexroth Indramat offers a 400 VAC rated voltage and withstands shocks up to 15 g. Part of the DMA Servo Drive Modules series, it uses natural convection cooling and supports 3×400…460 VAC ±10% supply. The module is IP20 rated and functions up to 1000 m installation altitude with derating.

It delivers 16 kVA rated power at 45 °C ambient and continuous braking power of 400–1000 W. Operating temperature spans 0–45 °C with derating to 55 °C. It features DB-style and IDC ribbon cable connectors.

Contact Us

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Bending Radius Of Cable


Min. 10x external diameter with 10 million bending operations guaranteed

Climatic Category


3K3 according to EN 60 721

Cooling


Natural convection

Degree Of Protection


IP20 according to EN 60 529

Installation Altitude


Up to 1000 m above sea level; derating up to max. 3000 m

Max. Continuous Braking Power


Varies (400 W to 1000 W depending on configuration)

Operating Temperature Range


0°C to +45°C, 46°C to +55°C with derating

Rated Power


16 kVA for 45°C ambient temperature

Rated Voltage


400 VAC

Resistance To Shock


15 g iaw DIN IEC 68-2-27, no functional disturbance

Resistance To Vibration


2...150 Hz, displacement: 1 mm at 2...13.2 Hz

Supply Voltage


3 x 400...460±10% VAC

System Frequency


48...62 Hz

Tensile Strength Of Fixed Installation Cables


Max. 50 N/mm² conductor area
