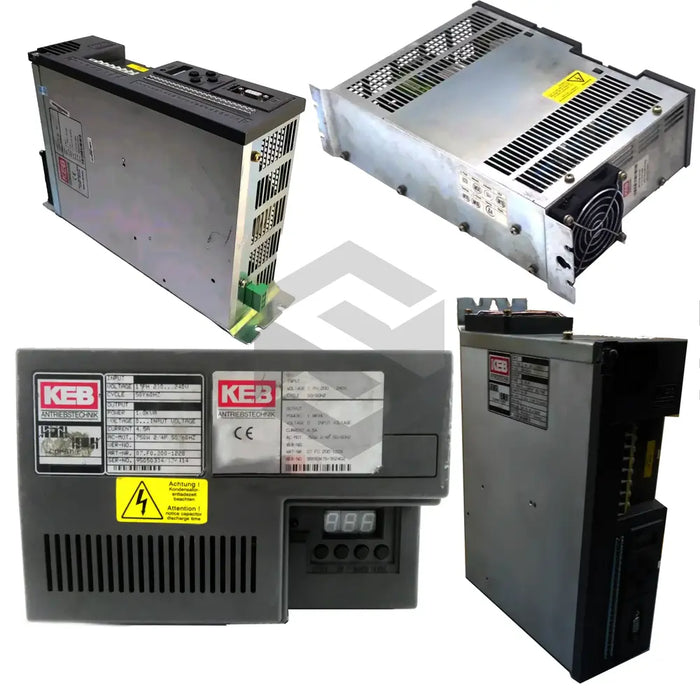

07.F0.086-0026

The KEB 07.F0.086-0026 control cabinet is a robust addition to the F0 Combivert Control Cabinets lineup from KEB, designed to meet the demands of modern industrial automation. It delivers a reliable 1.8 kVA output power at a continuous 4.5 A output current, making it ideal for driving 2.2 kW (2/4-pole) motors in high-performance settings. The unit supports a wide output frequency range of 0–408 Hz and operates on a standard 3-phase input and 3-phase output configuration. With an ambient operating temperature range from –10 °C to +55 °C, this cabinet ensures consistent performance in diverse environmental conditions. Its compact form factor measures 90 x 340 x 186.5 mm, allowing easy integration into existing control panels without sacrificing functionality.

Featuring advanced electrical and thermal management, the F0 Combivert cabinet operates at a line frequency of 50/60 Hz ±2 Hz with a line cross section of 1.5 mm², ensuring low-loss power transmission. The device accommodates a max. permissible line fuse of 10 A and supports a max. switching frequency of 4 kHz for precise speed control and dynamic response. Heat dissipation is optimized at 65 W of heat loss at 4 kHz, maintaining safe internal temperatures and enhancing longevity. The system’s overload protection ensures operational safety, offering 30 s at 151–200%, 2 min at 131–150%, and 5 min at 111–130% of rated current before tripping. For transport and storage, the cabinet withstands temperatures from –25 °C to +70 °C, facilitating reliable logistics and shelf readiness.

Operationally, the F0 Combivert cabinet combines efficiency with durability to minimize downtime and maintenance. Its integrated overload protection automatically mitigates current surges, preserving connected motors and reducing wear. The compact 90 x 340 x 186.5 mm enclosure allows installation in tightly packed racks, while the optimized heat dissipation at 65 W keeps internal components within safe temperature thresholds even under continuous load. The standard 3-phase input/output and universal 50/60 Hz line frequency compatibility streamline setup across various power infrastructures. Robust construction and precision engineering ensure consistent performance throughout the specified ambient range of –10 °C to +55 °C, making the cabinet suitable for a broad spectrum of industrial environments.

Engineers will find the F0 Combivert Control Cabinet flexible for integration into conveyor drives, pump controls, packaging machinery, and other automated systems requiring up to 2.2 kW of motor power. Its 4.5 A output current and high switching frequency capability allow precise torque and speed regulation, critical for synchronizing complex multi-axis operations. Standardized dimensions and mounting provisions facilitate rapid deployment within control panels, while compliance with industrial automation standards ensures seamless communication with higher-level PLC and SCADA systems. With the combined strengths of KEB engineering and the F0 series design, this control cabinet delivers reliable, high-performance operation across a variety of demanding applications.
