manufacturer image of 07F5B1B3900

07F5B1B3900

by KEB
$2,673.15 - $2,673.15
$2,673.15
$2,673.15 - $2,673.15
$2,673.15
In Stock, Ships 1 - 2 Days

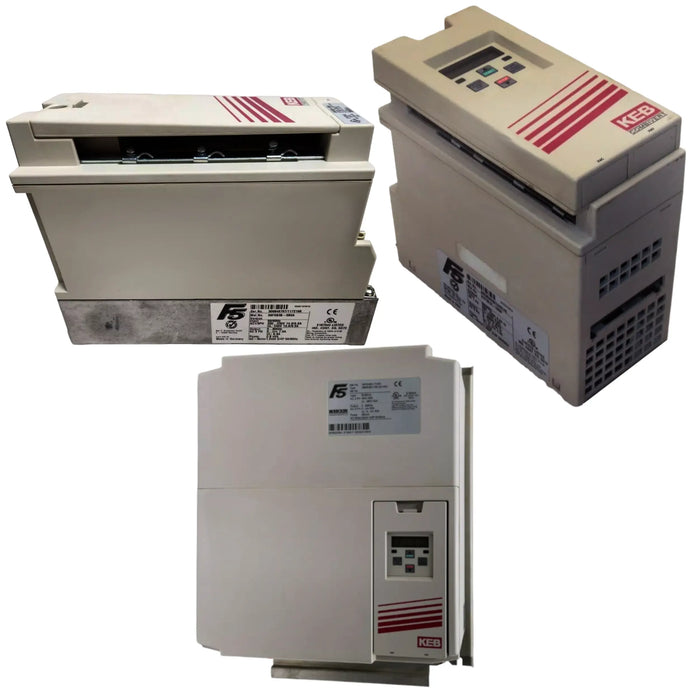

The 07F5B1B3900 is a high-performance COMBIVERT F5 Elevator drive produced by KEB. It boasts advanced features such as redundant safety measures, a multi-lingual LCD interface, PM motor control, and an automatic temperature-controlled cooling fan. Designed for efficient speed control in three-phase motors, this inverter should not be used with other electrical loads. Additions to the latest model include configuration options for digital inputs to trigger the drive's braking transistor, and CAN open lift functionality, enabled by new parameters like LA50 Analog 1 interface, LI50 UPS Mode, and LC36 Full Load Torque. Featuring IP 20 protection, the unit is shielded from liquids and small solid particles when mounted inside a cabinet. The inverter's optimal operating temperature lies between -10 to 45 degrees Celsius, and it should be housed in a non-corrosive, non-conductive, and explosion-free environment. Importantly, this model lacks a feedback card and has a standard braking transistor.
30 Day Warranty
Technical Specifications
  • Manufacturer: KEB
  • Product Code: 07F5B1B3900
  • Product Type: COMBIVERT F5 Elevator drive
  • Features: Redundant elevator safety measures, Multi-lingual LCD, PM motor control, Integrated temperature-controlled cooling fan
  • Use: Three-phase motor speed regulation
  • New Features: Configuration of digital inputs, braking transistor triggering, CAN open lift functionality
  • Parameters: LA50 Analog 1 interface selection, LI50 UPS Mode, LC36 Full Load Torque
  • Protection Category: IP 20
  • Mounting: Vertical, 2 inches clearance for cooling, firm point with minimal vibration
  • Recommended Sub Panel Type: Zinc plated or galvanized steel
  • Storage Temperature: Between -25 and 70 degrees
  • Operating Temperature: Between -10 to 45 degrees
  • Location: Explosive-proof area free from corrosive and conductive gases
  • Dimension: 07 unit size
  • Product Type: F5 unit type
  • Special Features: Standard braking transistor, No feedback card.
